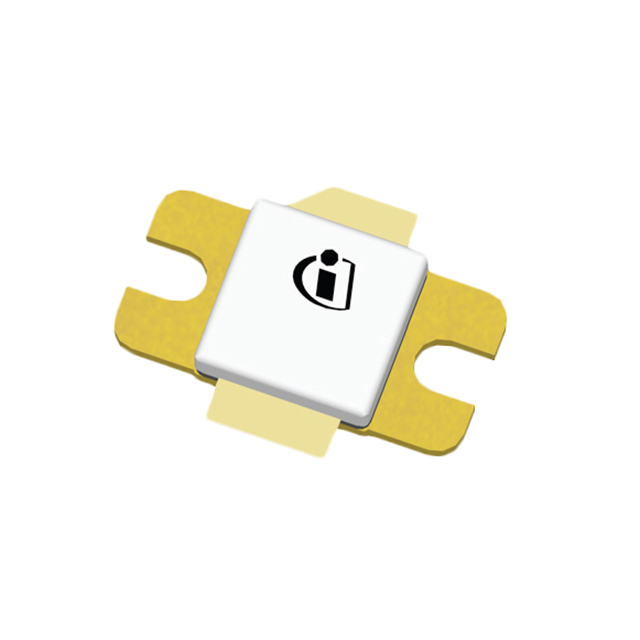

PTVA030121EAV1XWSA1

Overview

The PTVA030121EAV1XWSA1 is an RF MOSFET LDMOS device from Infineon Technologies, designed for high-power applications in the 450 MHz frequency band. It delivers a continuous wave output power of 30 W with a gain of 17 dB and drain efficiency of 60% at VDD = 50 V and IDQ = 30 mA. The component operates within a voltage range of 28 V to 50 V and features a surface-mount package.

Feature Summary

• High linearity performance suitable for demanding RF signal processing
• Robust thermal management capabilities integrated into the package design
• Optimized for stable operation across varying load conditions

Applications

• Base station transmitter modules
• Broadband communication infrastructure
• Industrial radio frequency heating systems

Procurement Notes

Verify the exact ordering suffix against the manufacturer's current datasheet to ensure compatibility with specific packaging or testing requirements. Confirm that the component meets all relevant regulatory standards for your target market before finalizing procurement orders.

Selection Notes

Select this component when designing circuits requiring high power density at 450 MHz. Ensure the PCB layout supports the required thermal dissipation and impedance matching networks are optimized for the specified operating voltage and bias currents.

Part Context

This part belongs to Infineon's portfolio of LDMOS transistors engineered for robust RF power amplification. It utilizes advanced semiconductor technology to provide reliable performance in high-frequency environments, serving as a critical active element in linear amplifier stages.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify pinout compatibility and electrical parameter overlaps before integrating any substitute components into existing designs.
