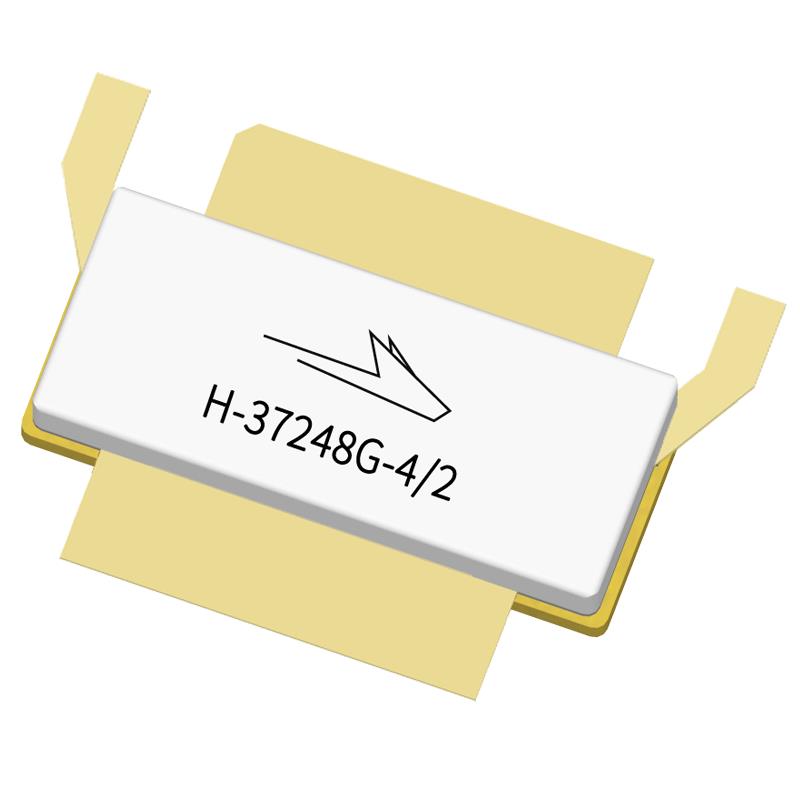

PXFE211507FC-V1-R0

$47.16

Description：RF MOSFET LDMOS 28V H-37248G-4
Series：-

SKU:16c8f0b85e45 Category: RF FETs, MOSFETs Brand: MACOM Technology Solutions

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF MOSFET LDMOS 28V H-37248G-4
Series：-
Mfr：MACOM Technology Solutions
Package：Tape & Reel (TR)
Technology：LDMOS
Frequency：2.11GHz ~ 2.17GHz
Gain：18dB
Voltage - Test：28 V
Current Rating (Amps)：10µA
Noise Figure：-
Current - Test：900 mA
Power - Output：170W
Voltage - Rated：65 V
Grade：-
Qualification：-
Mounting Type：Surface Mount
Package / Case：H-37248G-4/2
Supplier Device Package：H-37248G-4/2
Configuration：-

Download product information

PXFE211507FC-V1-R0

Overview

The PXFE211507FC-V1-R0 is an RF MOSFET manufactured by MACOM Technology Solutions. It operates within the frequency range of 2.11 GHz to 2.17 GHz and utilizes a 28V supply voltage. The device features a maximum gain of 18 dB and supports a power output of 170W. It is housed in the H-37248G-4/2 package.

Feature Summary

High-power RF performance with 170W output capability
Operates in the 2.11 GHz to 2.17 GHz frequency band
Utilizes LDMOS technology for robust RF applications

Applications

RF power amplification in telecommunications infrastructure
Industrial RF heating and plasma generation systems
Defense radar and electronic warfare subsystems

Procurement Notes

Verify the specific suffix R0 against official MACOM documentation to confirm exact pinout and thermal characteristics, as variations may exist within the PXFE211507FC family. Ensure compatibility with the H-37248G-4/2 mounting requirements during integration.

Selection Notes

Select this component when high linearity and power efficiency are required in the 2.11–2.17 GHz range. Consider the 28V bias requirement and the specific thermal management needs associated with the 170W output rating in the designated package.

Part Context

This part belongs to the PXFE series of RF MOSFETs from MACOM, designed for demanding RF applications. The series typically includes variants like the PXFE211507FC-V1-R2, which shares similar electrical specifications but may differ in packaging or minor parameter tolerances.

Replacement Considerations

The PXFE211507FC-V1-R2 is a documented variant within the same product family. Verify if the specific suffix change impacts mechanical fit or electrical tolerance before substitution.
