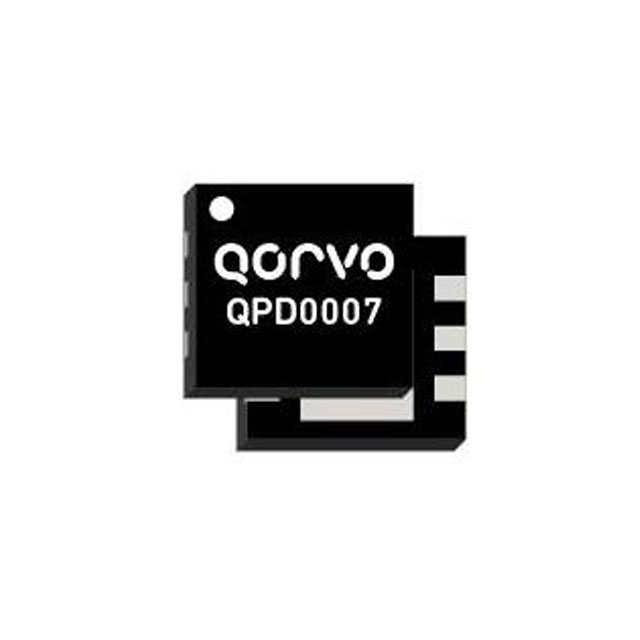

QPD0007TR13

$9.44

Description：3.4-3.8GHZ 15W 50V GAN SINGLE CH
Series：-

SKU:a5afecbafb25 Category: RF FETs, MOSFETs Brand: Qorvo

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：3.4-3.8GHZ 15W 50V GAN SINGLE CH
Series：-
Mfr：Qorvo
Package：Tape & Reel (TR)
Technology：GaN
Frequency：0Hz ~ 5GHz
Gain：18.4dB
Voltage - Test：48 V
Current Rating (Amps)：-
Noise Figure：-
Current - Test：32.5 mA
Power - Output：20W
Voltage - Rated：48 V
Grade：-
Qualification：-
Mounting Type：Surface Mount
Package / Case：6-VDFN Exposed Pad
Supplier Device Package：6-DFN (4.5x4)
Configuration：-

Download product information

QPD0007TR13

Overview

The QPD0007TR13 is a GaN transistor pair manufactured by Qorvo, designed for high-power RF amplification. It operates within the 3.4 GHz to 3.6 GHz frequency range and utilizes Surface Mount Device (SMD/SMT) technology. The component is supplied in a Reel package format with a factory packaging quantity of 2500 units. It features two channels and exhibits humidity sensitivity, requiring appropriate handling during assembly. This device belongs to the QPD0007 series and falls under the Wireless & RF Integrated Circuits subcategory.

Feature Summary

Utilizes Gallium Nitride (GaN) technology for high-performance RF applications
Configured as a dual-channel transistor pair for power amplification
Designed for surface mount installation on printed circuit boards

Applications

RF Power Amplifier circuits
Wireless communication infrastructure
Broadband signal processing systems

Procurement Notes

Verify availability status directly with authorized distributors or the manufacturer, as supply may be restricted. Confirm that the Reel packaging matches your automated assembly requirements. Ensure compliance with humidity sensitivity guidelines during storage and soldering processes to maintain component integrity and performance specifications.

Selection Notes

Select this component when designing systems operating between 3.4 GHz and 3.6 GHz that require GaN-based power amplification. Consider the SMD/SMT package type for compatibility with standard surface mount manufacturing lines. Evaluate the dual-channel configuration against system architecture needs for efficient space utilization and signal processing capabilities.

Part Context

This part belongs to the QPD0007 series from Qorvo, focusing on RF amplifier solutions. It shares the manufacturer's expertise in GaN technology and wireless integrated circuits. The component is distinct from other Qorvo products like the QPF4507 or QPC6713, which serve different functions such as front-end modules or attenuators.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Engineers should consult official Qorvo resources or authorized distributors for verified cross-reference information before considering alternative components.
