Product Detailed Parameters
- Description：DIODE ARR SCHOT 15V 100MA SOT963
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR),Cut Tape (CT)
- Diode Configuration：2 Pair Common Cathode
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：15 V
- Current - Average Rectified (Io) (per Diode)：100mA
- Voltage - Forward (Vf) (Max) @ If：400 mV @ 10 mA
- Speed：Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr)：5 ns
- Current - Reverse Leakage @ Vr：15 µA @ 10 V
- Operating Temperature - Junction：-65°C ~ 150°C
- Mounting Type：Surface Mount

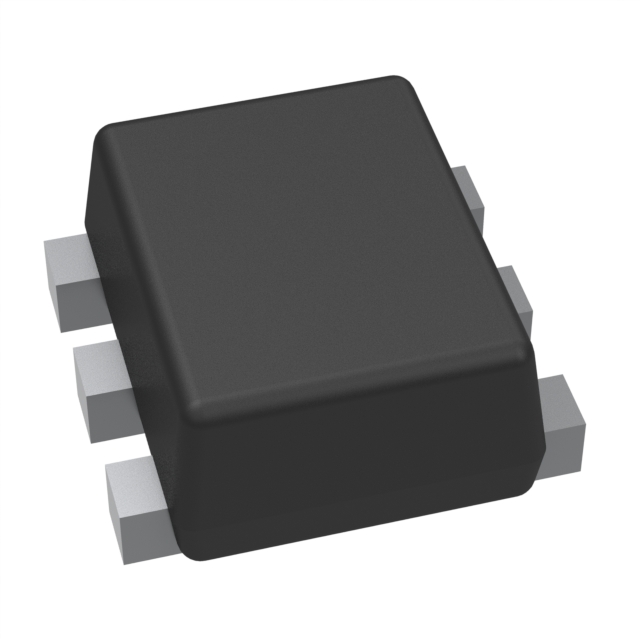

- Package / Case：SOT-963
- Supplier Device Package：SOT-963
- Grade：-
- Qualification：-
Download product information
Overview
The QSG0115UDJ-7 is a dual common cathode Schottky barrier diode manufactured by Diodes Incorporated. It features a maximum repetitive reverse voltage of 15 V and an average rectified output current of 100 mA per diode. The device exhibits a maximum forward voltage drop of 0.4 V at 10 mA and a maximum reverse leakage current of 15 µA at 10 V. Packaged in the compact SOT963 surface mount case, it supports an operating junction temperature range from -65°C to +150°C with a power dissipation rating of 260 mW.
Feature Summary
- Low forward voltage design for fast switching applications
- Extremely fast switching capability with minimal recovery time
- Totally lead-free and fully RoHS compliant construction
Applications
- Portable devices
- Mobile applications
- Low voltage motor control
Procurement Notes
Verify the component against the official Diodes Incorporated datasheet DS36565 Rev. 4-2 to confirm authenticity. Ensure the ordering suffix matches the specified tape and reel packaging format. Confirm that the device meets required environmental standards, including being halogen and antimony free. Validate that the package type corresponds to the SOT963 configuration before finalizing procurement.
Selection Notes
Select this component for circuits requiring low forward voltage drops and rapid switching speeds within a 15 V reverse voltage limit. The SOT963 package is suitable for space-constrained designs in portable and mobile electronics. Verify thermal resistance requirements against the specific PCB copper pad layout, as power dissipation ratings vary based on the recommended footprint dimensions.
Part Context
This part belongs to the QSG0115 series of dual common cathode Schottky diodes produced by Diodes Incorporated. The manufacturer specializes in high-quality analog and power solutions for automotive, industrial, and consumer markets. The product utilizes a molded plastic green molding compound with UL flammability classification rating 94V-0.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation.
FAQ
What is the maximum non-repetitive peak forward surge current?
The maximum non-repetitive peak forward surge current (IFSM) is 2 A under conditions of an 8.3 ms single half sine-wave superimposed on rated load.
How does the power dissipation rating change with different PCB layouts?
Power dissipation is rated at 260 mW with a minimum recommended 10 mm² pad layout, and increases to 360 mW when using a larger 100 mm² FR-4 PCB pad layout.
