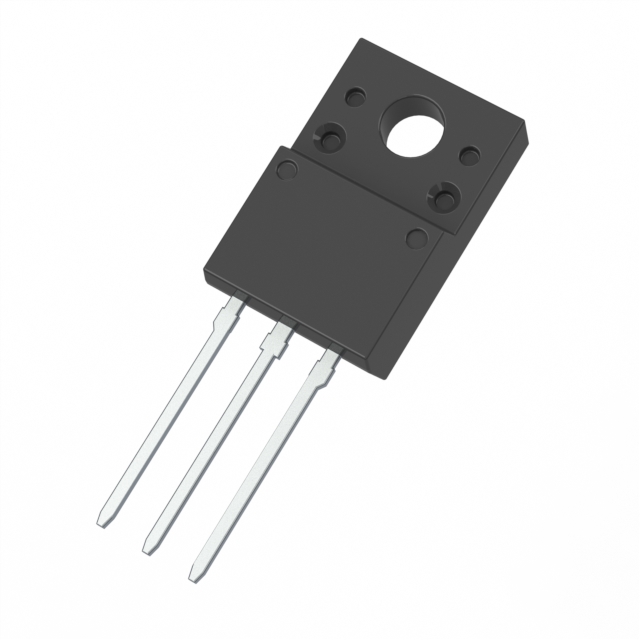

RJK1002DPP-A0#T2

RJK1002DPP-A0#T2 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Renesas Electronics Corporation. Its product description is MOSFET N-CH 100V 70A TO220FPA. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for RJK1002DPP-A0#T2

• Description：MOSFET N-CH 100V 70A TO220FPA
• Series：-
• Mfr：Renesas Electronics Corporation
• Package：Tube
• FET Type：N-Channel
• Technology：MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss)：100 V
• Current - Continuous Drain (Id) @ 25°C：70A (Ta)
• Drive Voltage (Max Rds On, Min Rds On)：10V
• Rds On (Max) @ Id, Vgs：7.6mOhm @ 35A, 10V
• Vgs(th) (Max) @ Id：4V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs：94 nC @ 10 V
• Vgs (Max)：±20V
• Input Capacitance (Ciss) (Max) @ Vds：6450 pF @ 10 V
• FET Feature：-
• Power Dissipation (Max)：30W (Ta)
• Operating Temperature：150°C
• Grade：-
• Qualification：-
• Mounting Type：Through Hole
• Supplier Device Package：TO-220ABA
• Package / Case：TO-220-3

Single FETs, MOSFETs datasheet and documents for RJK1002DPP-A0#T2
