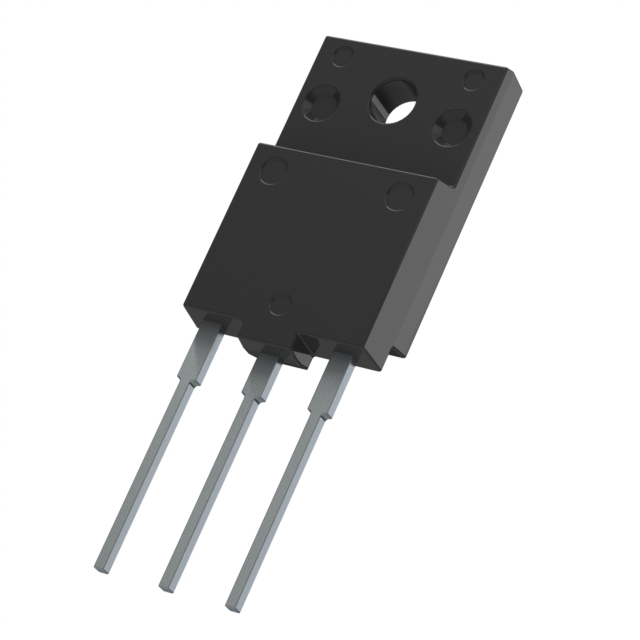

RJP65T54DPM-A0#T2

$4.15

Description：IGBT TRENCH 650V 60A TO-3PFP
Series：-

SKU:02093f294143 Category: Single IGBTs Brand: Renesas Electronics Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT TRENCH 650V 60A TO-3PFP
Series：-
Mfr：Renesas Electronics Corporation
Package：Tube
IGBT Type：Trench
Voltage - Collector Emitter Breakdown (Max)：650 V
Current - Collector (Ic) (Max)：60 A
Current - Collector Pulsed (Icm)：-
Vce(on) (Max) @ Vge, Ic：1.68V @ 15V, 30A
Power - Max：63.5 W
Switching Energy：330µJ (on), 760µJ (off)
Input Type：Standard
Gate Charge：72 nC
Td (on/off) @ 25°C：35ns/120ns
Test Condition：400V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr)：-
Operating Temperature：175°C (TJ)
Mounting Type：Through Hole
Package / Case：SC-94
Supplier Device Package：TO-3PFP
Grade：-
Qualification：-

Download product information

RJP65T54DPM-A0#T2

Overview

The RJP65T54DPM-A0#T2 is a 650V, 30A trench gate IGBT from Renesas Electronics Corporation. It utilizes G7H series technology for high-speed switching and low conduction losses. The device features a collector-emitter saturation voltage of 1.8V typical at 20A and 15V gate drive. Switching times include a fall time of 45ns typical under inductive load conditions. It operates within a junction temperature range of -40°C to 150°C. The component is housed in a TO-247A package suitable for through-hole mounting.

Feature Summary

G7H trench gate technology for optimized switching performance
High-speed switching capability with low turn-off tail current
Robust thermal design for high-power applications

Applications

Power Factor Correction (PFC) circuits
Industrial motor drives
Uninterruptible Power Supplies (UPS)

Procurement Notes

Verify the specific suffix #T2 against manufacturer documentation to confirm tape-and-reel packaging details. Ensure compatibility with existing PCB footprints for the TO-247A package. Cross-reference electrical parameters with the official datasheet to validate performance requirements for the target application environment.

Selection Notes

Select this component for designs requiring 650V blocking voltage and 30A continuous current handling. Consider the 1.8V Vce(sat) for efficiency optimization in power conversion stages. Evaluate thermal management solutions based on the specified operating temperature range and package characteristics.

Part Context

This IGBT belongs to the G7H series, designed for high-frequency operation up to 100kHz. It serves as an upgrade to previous generations with improved switching speed and reduced energy losses. The part is intended for use in medium-power industrial and consumer electronics applications.

Replacement Considerations

Direct replacements may include other 650V/30A trench IGBTs from Renesas such as the RJP65T43DPQ series. Verify pinout compatibility and thermal resistance values before substitution.
