RS1MLSHRVG

Single Diodes Overview

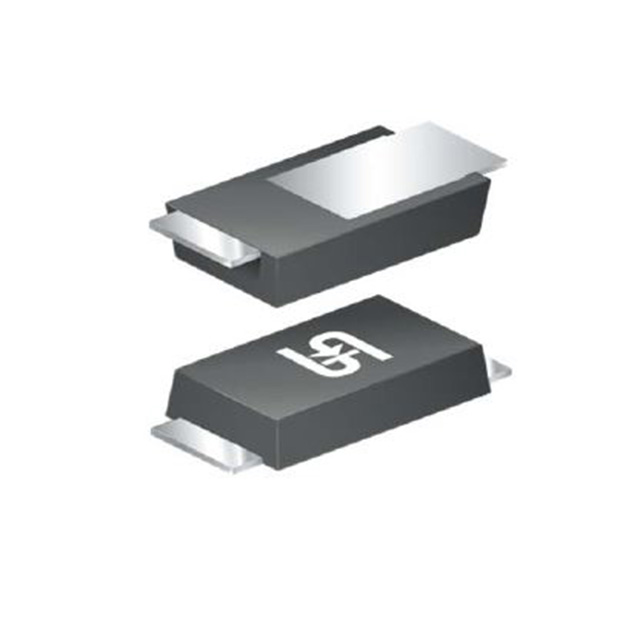

The RS1MLSHRVG is a fast recovery rectifier diode manufactured by Taiwan Semiconductor Corporation. It features a single configuration housed in an SOD-123H surface-mount package. The device supports a maximum DC reverse voltage of 1000 V and an average rectified forward current of 1.2 A. Designed for standard technology applications, it provides reliable performance in high-voltage switching environments.

Single Diodes Feature Summary

• Fast recovery rectification capability for efficient switching operations
• High voltage tolerance with 1000 V reverse voltage rating
• Compact SOD-123H surface-mount packaging for automated assembly

Single Diodes Applications

• High-frequency power supply circuits
• DC-DC converter output rectification
• Free-wheeling diodes in inductive load protection

Single Diodes Procurement Notes

Verify the complete part number including the suffix HRVG to ensure correct tape-and-reel packaging and specific binning. Confirm the manufacturer is Taiwan Semiconductor Corporation to avoid counterfeit components. Check for RoHS compliance documentation if required for your manufacturing process. Ensure the SOD-123H footprint matches your PCB design constraints before ordering.

Single Diodes Selection Notes

Select this component when a 1000 V reverse voltage rating is necessary for the circuit design. The 1.2 A average current capacity suits moderate power applications. The fast recovery characteristic makes it suitable for high-frequency switching scenarios where standard rectifiers would exhibit excessive reverse recovery losses. Ensure thermal management aligns with the SOD-123H package limitations.

Single Diodes Part Context

This component belongs to the RS1M series of fast recovery rectifiers from Taiwan Semiconductor. The series offers various voltage ratings within the same package family. The RS1MLSHRVG specifically denotes the 1000 V variant with specific packaging and handling specifications defined by the manufacturer's product line standards.

Single Diodes Replacement Considerations

Direct substitutes must match the 1000 V reverse voltage, 1.2 A current, and SOD-123H package. Verify pinout compatibility and reverse recovery time specifications. Generic replacements may differ in thermal resistance or surge current capabilities.
