S2MBFL-TP

Single Diodes Overview

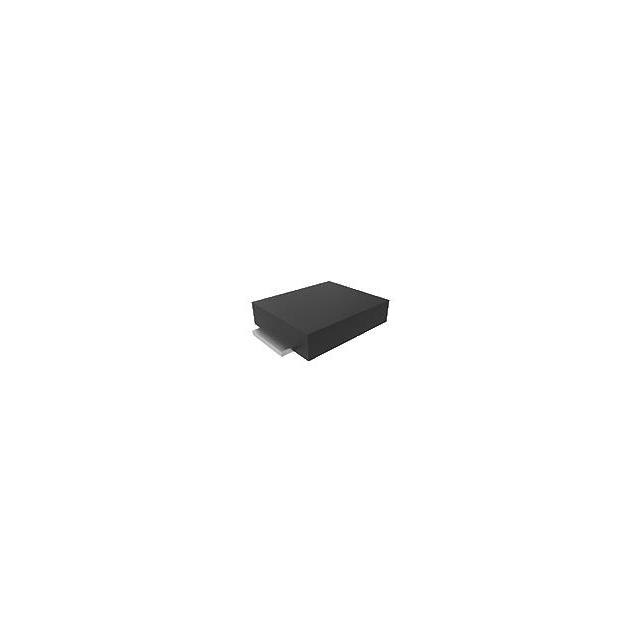

The S2MBFL-TP is a standard recovery rectifier manufactured by Micro Commercial Components. It features a maximum repetitive peak reverse voltage of 1000 V and an average forward rectified current of 2 A. The device utilizes the SMBF surface-mount package, corresponding to the DO-221AA outline. Key electrical characteristics include a maximum forward voltage of 1.1 V at 2 A and a reverse leakage current of 5 µA at 1000 V. The junction operating temperature range extends from -55°C to 150°C.

Single Diodes Feature Summary

• High voltage blocking capability suitable for demanding power supply applications
• Surface-mount construction in a compact SMBF package for automated assembly
• Wide thermal operating range ensuring reliability under elevated temperatures

Single Diodes Applications

• General-purpose rectification in AC/DC converter circuits
• Freewheeling diodes in switching power supplies
• Reverse polarity protection in electronic systems

Single Diodes Procurement Notes

Verify the specific ordering suffix and manufacturer part number against official Micro Commercial Components documentation before procurement. Confirm that the component meets required RoHS3 compliance standards for your region. Ensure the selected packaging format aligns with your manufacturing equipment capabilities. Cross-reference datasheet parameters with your circuit design requirements to guarantee operational safety.

Single Diodes Selection Notes

Select this component when a 1000 V rating and 2 A continuous current capacity are required in a surface-mount form factor. The standard recovery speed makes it appropriate for lower-frequency rectification tasks rather than high-speed switching applications. Consider the thermal management requirements associated with the SMBF package and the specified junction temperature limits during system design.

Single Diodes Part Context

This component belongs to the MURS and standard rectifier series produced by Micro Commercial Components. It shares the SMBF footprint with other variants in the family, such as the FR2MBFL-TP and ER2JBFL-TP, which offer different voltage ratings or recovery speeds. The consistent packaging facilitates board layout standardization across different power handling requirements within the same product line.

Single Diodes Replacement Considerations

Publicly confirmed parameter-equivalent substitutes include the Panjit International Inc. ER2JF_R1_00001.
