Product Detailed Parameters
- Description：SCR 800V 1.25A DO214
- Series：Sx02CSx
- Mfr：Littelfuse Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Voltage - Off State：800 V
- Voltage - Gate Trigger (Vgt) (Max)：800 mV
- Current - Gate Trigger (Igt) (Max)：200 µA
- Current - Hold (Ih) (Max)：5 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm)：16A, 20A
- SCR Type：Sensitive Gate
- Operating Temperature：-40°C ~ 110°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Package / Case：DO-214AA, SMB (3 Leads), Compak
- Supplier Device Package：Compak
- Voltage - On State (Vtm) (Max)：1.7 V
- Current - On State (It (AV)) (Max)：800 mA
- Current - On State (It (RMS)) (Max)：1.25 A
- Current - Off State (Max)：1 µA
Download product information
Overview

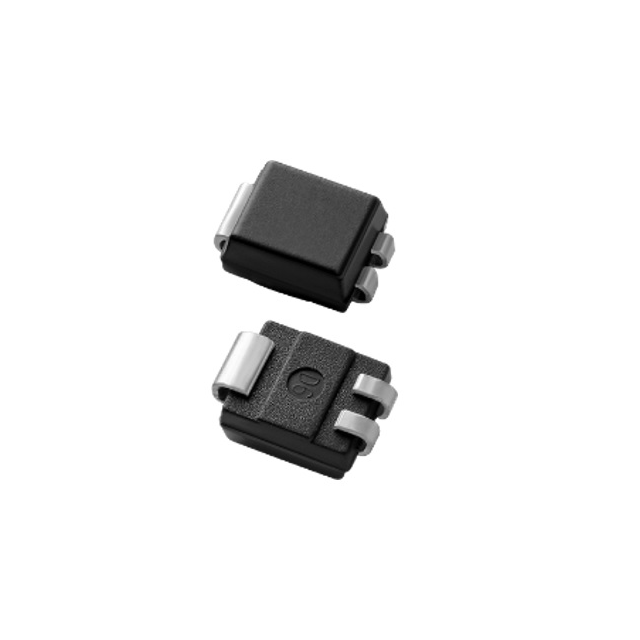

The Littelfuse S802CS2RP is a silicon-controlled rectifier (SCR) from the Sx02CSx series, designed for surface-mount applications in the Compak package. It features an 800 V repetitive off-state voltage and supports a maximum RMS on-state current of 1.25 A. The device is characterized by sensitive gate triggering, with a maximum gate trigger voltage of 800 mV and a maximum gate trigger current of 200 µA. It operates within a junction temperature range of -40°C to 110°C and exhibits a maximum on-state voltage of 1.7 V.
Feature Summary
- Sensitive gate structure enabling low-power control signals for reliable triggering
- Surface-mount Compak packaging optimized for automated PCB assembly processes
- High voltage blocking capability suitable for demanding power switching environments
Applications
- AC power control circuits requiring compact form factors
- Solid-state relay implementations
- Motor speed control systems
Procurement Notes
Verify the specific ordering suffix against official Littelfuse documentation to ensure correct package and tape-and-reel specifications. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents before finalizing procurement orders.
Selection Notes
Select this component when an 800 V rating and 1.25 A RMS current capacity are required in a surface-mount footprint. Ensure the application circuit provides sufficient gate drive current below 200 µA to utilize the sensitive gate feature effectively while maintaining thermal stability within the specified operating temperature range.
Part Context
This SCR belongs to the Sx02CSx family of Littelfuse thyristors, which are engineered for high-reliability power switching. The series emphasizes compact surface-mount solutions that integrate high voltage handling with sensitive gate characteristics, addressing space constraints in modern electronic designs without compromising performance under load.
Replacement Considerations
Consult Littelfuse official substitution guides for verified equivalents. Cross-reference key parameters such as VDRM, IT(RMS), IGT, and package dimensions to ensure functional compatibility during design updates or supply chain adjustments.
