SDPS-0502-360-SMA

Overview

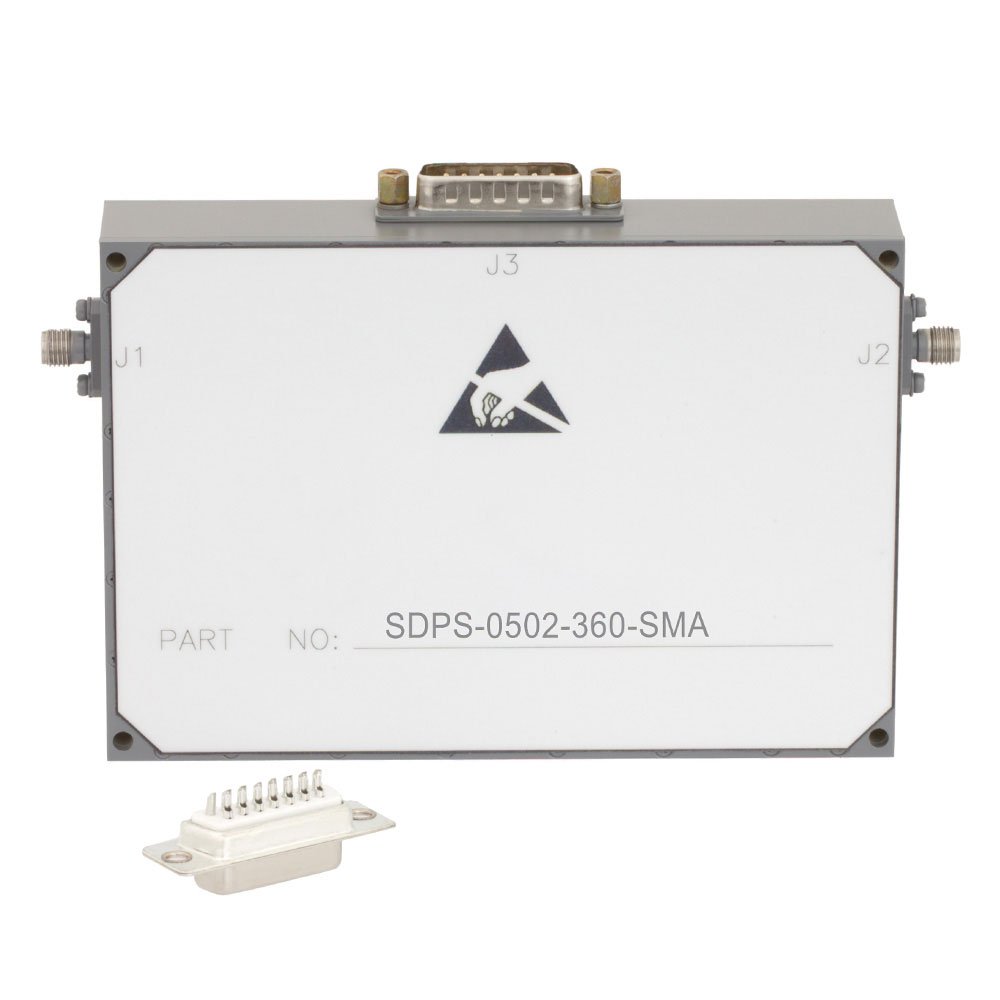

The SDPS-0502-360-SMA is an SMA 8-bit programmable digital phase shifter manufactured by Fairview Microwave. It operates within a frequency range of 500 MHz to 2 GHz and provides a total phase shift of 0 to 360 degrees across 256 discrete steps. The device supports an input power level of 30 dBm. Constructed with SMA interfaces, this component ensures precise signal phase control for RF applications requiring high-resolution digital adjustment.

Feature Summary

• Provides 8-bit resolution with 256 distinct phase shift steps
• Delivers full 0 to 360-degree phase shift capability
• Operates reliably at input power levels up to 30 dBm

Applications

• Phased array antenna systems
• RF test and measurement equipment
• Wireless communication infrastructure

Procurement Notes

Verify the specific SMA connector gender and interface type against system requirements before procurement. Confirm that the operating frequency range of 500 MHz to 2 GHz aligns with the target application spectrum. Ensure the 30 dBm power handling capacity meets the signal strength demands of the circuit design to prevent component damage or performance degradation during operation.

Selection Notes

Select this component when precise digital phase control is required between 500 MHz and 2 GHz. The 8-bit resolution offers fine-grained adjustment suitable for beamforming applications. Consider the SMA interface compatibility with existing board layouts. Evaluate the 30 dBm power rating against maximum expected signal levels to ensure operational safety and linearity within the specified frequency band.

Part Context

This part belongs to Fairview Microwave's digital phase shifter series, designed for L-band applications. It serves as a critical active component in modern RF systems where electronic beam steering or phase alignment is necessary. The SMA interface facilitates integration into standard RF test setups and communication modules requiring compact, high-performance phase shifting solutions.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify functional equivalence regarding bit resolution, frequency range, and power handling if considering alternative manufacturers.
