SH32N65DM6AG

$18.28

Description：MOSFET 2N-CH 650V 32A 9ACEPACK
Series：ECOPACK®

SKU:a5434d2062b2 Category: FET, MOSFET Arrays Brand: STMicroelectronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET 2N-CH 650V 32A 9ACEPACK
Series：ECOPACK®
Mfr：STMicroelectronics
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：MOSFET (Metal Oxide)
Configuration：2 N-Channel (Half Bridge)
FET Feature：-
Drain to Source Voltage (Vdss)：650V
Current - Continuous Drain (Id) @ 25°C：32A (Tc)
Rds On (Max) @ Id, Vgs：97mOhm @ 23A, 10V
Vgs(th) (Max) @ Id：4.75V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：47nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds：2211pF @ 100V
Power - Max：208W (Tc)
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：9-PowerSMD
Supplier Device Package：9-ACEPACK SMIT
Grade：-
Qualification：-

Download product information

SH32N65DM6AG

Overview

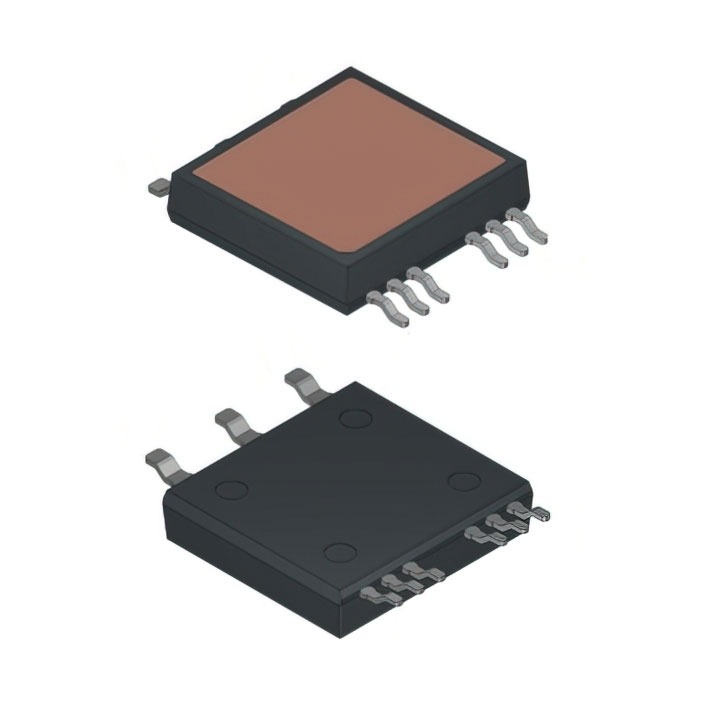

The SH32N65DM6AG is an automotive-grade N-channel half-bridge power MOSFET module from STMicroelectronics, utilizing MDmesh DM6 technology. Packaged in the ACEPACK SMIT surface-mount format, it integrates two switches with a DBC substrate for low thermal resistance and high isolation (3.4 kVrms). Key electrical ratings include a 650 V drain-source breakdown voltage, 32 A continuous drain current at 25 °C, and a maximum on-resistance of 97 mΩ. The device features fast-recovery body diodes with low switching energies, supporting robust performance in demanding power conversion topologies.

Feature Summary

AQG 324 qualified for automotive reliability standards
Half-bridge topology with integrated dual MOSFETs
Fast recovery body diode with low reverse recovery charge
Low package inductance and excellent dv/dt ruggedness

Applications

Phase-leg configurations in power converters
Boost converter circuits
Single switch implementations via internal combination

Procurement Notes

Verify component authenticity by cross-referencing the marking code H32N65DM6 against official datasheet specifications. Confirm that the delivered units match the ACEPACK SMIT package outline and pinout configuration to ensure compatibility with intended PCB footprints and assembly processes.

Selection Notes

Select this module when designing compact, high-efficiency power stages requiring integrated half-bridge functionality. The ACEPACK SMIT package offers superior thermal management through its isolated top-side pad and DBC substrate, making it suitable for applications where space constraints and heat dissipation are critical design factors.

Part Context

This component belongs to the MDmesh DM6 series, which optimizes super-junction technology for fast-recovery diode characteristics. It represents an evolution in ST's automotive-grade power modules, combining improved RDS(on) per area with enhanced switching behavior compared to previous generations.

Replacement Considerations

Direct substitutes within the same family include SH68N65DM6AG and SH63N65DM6AG, which share the ACEPACK SMIT package and half-bridge topology but differ in current handling and on-resistance values.
