SKW07N120FKSA1

$3.26

Description：IGBT NPT 1200V 16.5A TO247-3
Series：-

SKU:36a58117d364 Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT NPT 1200V 16.5A TO247-3
Series：-
Mfr：Infineon Technologies
Package：Tube,Tube
IGBT Type：NPT
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：16.5 A
Current - Collector Pulsed (Icm)：27 A
Vce(on) (Max) @ Vge, Ic：3.6V @ 15V, 8A
Power - Max：125 W
Switching Energy：1mJ
Input Type：Standard
Gate Charge：70 nC
Td (on/off) @ 25°C：27ns/440ns
Test Condition：800V, 8A, 47Ohm, 15V
Reverse Recovery Time (trr)：60 ns
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Through Hole

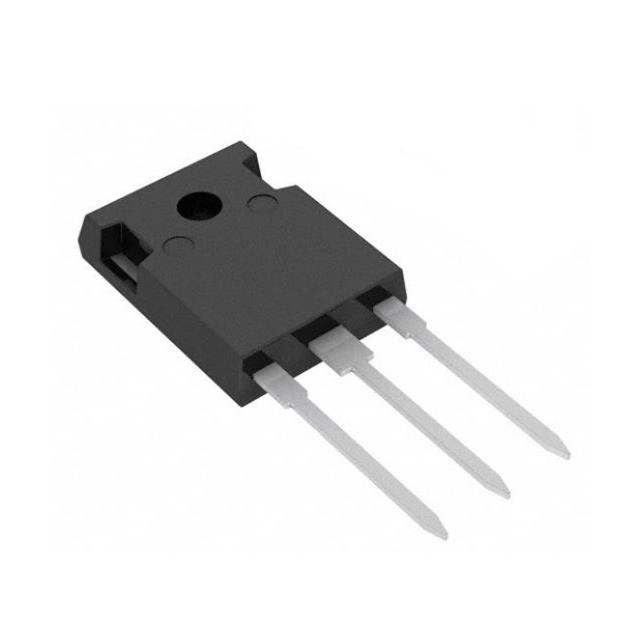

Package / Case：TO-247-3
Supplier Device Package：PG-TO247-3-1
Grade：-
Qualification：-

Download product information

SKW07N120FKSA1

Overview

The SKW07N120 is a Fast IGBT in NPT-technology with a soft, fast recovery anti-parallel Emitter Controlled Diode. It features a collector-emitter voltage of 1200V and a DC collector current of 16.5A at 25°C. The turn-off energy (Eoff) is 0.7mJ. Designed for motor controls, inverters, and SMPS, it offers lower Eoff compared to previous generations. It has a short circuit withstand time of 10µs and operates within a junction temperature range of -55°C to +150°C.

Feature Summary

NPT-Technology provides very tight parameter distribution, high ruggedness, and parallel switching capability.
Features a soft, fast recovery anti-parallel Emitter Controlled Diode.
Lower Eoff compared to previous generation devices.
Short circuit withstand time of 10µs.

Applications

Motor controls
Inverter
SMPS

Procurement Notes

Verify the specific ordering suffix FKSA1 against Infineon's official documentation to confirm lead frame material and plating specifications. Ensure compliance with RoHS standards and Pb-free lead plating requirements as stated in the datasheet. Confirm JEDEC qualification status for your target application environment before procurement.

Selection Notes

Select this component for applications requiring high ruggedness and temperature-stable behavior due to its NPT technology. Consider the 10µs short circuit withstand time for robust protection schemes. Evaluate the thermal resistance values and power dissipation limits relative to your cooling solution to ensure operation within the specified junction temperature range.

Part Context

This device belongs to Infineon's Fast IGBT series utilizing Non-Punch Through (NPT) technology. It is designed to offer improved performance over previous generations, specifically focusing on reduced switching losses while maintaining high reliability. The PG-TO-247-3 package facilitates efficient heat dissipation for medium-power applications.
