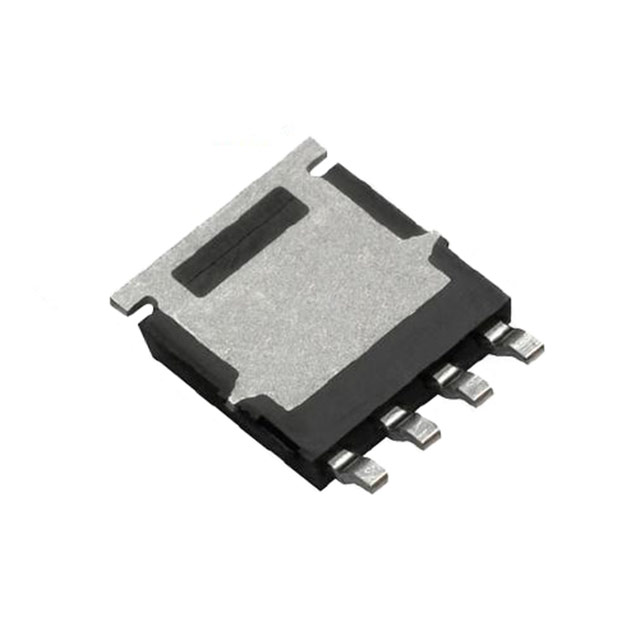

SQJA70EP-T1_GE3 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Vishay Siliconix. Its product description is MOSFET N-CH 100V 14.7A PPAK SO-8. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for SQJA70EP-T1_GE3
- Description：MOSFET N-CH 100V 14.7A PPAK SO-8
- Series：TrenchFET®
- Mfr：Vishay Siliconix
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：100 V
- Current - Continuous Drain (Id) @ 25°C：14.7A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：10V
- Rds On (Max) @ Id, Vgs：95mOhm @ 4A, 10V
- Vgs(th) (Max) @ Id：3.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：7 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：220 pF @ 25 V
- FET Feature：-
- Power Dissipation (Max)：27W (Tc)
- Operating Temperature：-55°C ~ 175°C (TJ)
- Grade：Automotive
- Qualification：AEC-Q101
- Mounting Type：Surface Mount
- Supplier Device Package：PowerPAK® SO-8
- Package / Case：PowerPAK® SO-8
Single FETs, MOSFETs datasheet and documents for SQJA70EP-T1_GE3
Single FETs, MOSFETs Overview
The SQJA70EP-T1_GE3 is an automotive-grade N-channel MOSFET from Vishay Siliconix, utilizing TrenchFET technology. It features a 100 V drain-source voltage and a maximum continuous drain current of 14.7 A at 25 °C. The device has a typical on-state resistance of 0.095 Ω at VGS = 10 V. It operates within a junction temperature range of -55 °C to +175 °C and is housed in a single PowerPAK SO-8L package.
Single FETs, MOSFETs Feature Summary
- AEC-Q101 qualified for automotive reliability standards
- TrenchFET power MOSFET architecture
- 100% Rg and UIS tested for quality assurance
Single FETs, MOSFETs Applications
- Automotive electronic systems requiring high-voltage switching
- Power management circuits operating up to 175 °C
- Single-channel load switching applications
Single FETs, MOSFETs Procurement Notes
Verify the specific ordering suffix against official documentation to confirm package type and compliance status. Ensure that the requested component matches the exact part number SQJA70EP-T1_GE3. Confirm lead-free and halogen-free material categorization requirements with the manufacturer or authorized distributor before finalizing procurement.
Single FETs, MOSFETs Selection Notes
Select this component for designs requiring a single N-channel switch with 100 V breakdown capability. Consider the thermal resistance ratings when designing PCB layouts for adequate heat dissipation. Verify gate drive voltage compatibility with the specified threshold and on-resistance characteristics for optimal performance.
Single FETs, MOSFETs Part Context
This part belongs to the Vishay Siliconix SQA series of automotive MOSFETs. It is designed specifically for high-reliability applications in harsh environments. The PowerPAK SO-8L package provides a compact footprint suitable for space-constrained board designs while maintaining robust electrical performance.
Single FETs, MOSFETs Replacement Considerations
Consult official Vishay documentation for verified substitute part numbers. Do not assume cross-compatibility with other series without validating pinout, electrical parameters, and package dimensions.
