SSF2215

Overview

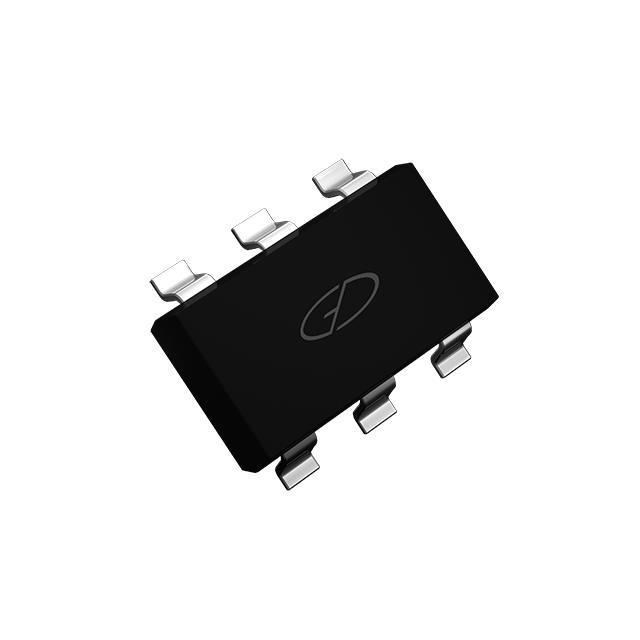

The SSF2215 is a dual P-channel MOSFET in an SOT-23-6L package. It features a -20V drain-source voltage and -3A continuous drain current. The on-resistance is typically 70mΩ at VGS=-4.5V and ID=-3A, with a maximum of 85mΩ. Gate threshold voltage ranges from -0.3V to -1.0V. Total gate charge is typically 4.8nC. Operating junction temperature spans -55°C to +150°C.

Feature Summary

• Dual configuration for space-efficient circuit designs
• Low on-resistance for high efficiency
• Fast switching and reverse body recovery
• Advanced MOSFET process technology

Applications

• High efficiency switch mode power supplies
• Battery protection circuits
• Load switch applications
• Hand-held devices

Procurement Notes

Verify the manufacturer designation as Good-Ark Semiconductor or Good-Ark Semi against official documentation. Confirm the SOT-23-6L package outline dimensions match design requirements. Ensure electrical parameters align with system specifications before procurement.

Selection Notes

Select based on the -20V voltage rating and -3A current capacity. Consider the low gate charge for driving efficiency. Evaluate thermal resistance for heat dissipation needs. Verify compatibility with logic levels using the gate threshold voltage range.

Part Context

This component belongs to the category of dual P-channel MOSFETs. It utilizes advanced process technology to achieve high cell density. The device is designed for reliability in portable electronics and power management systems.

Replacement Considerations

Check pinout compatibility for SOT-23-6L packages. Compare voltage and current ratings closely. Verify on-resistance values to ensure equivalent performance in load switching applications.

FAQ

What is the package type?

The SSF2215 uses an SOT-23-6L package.

Is this a single or dual device?

It is a dual P-channel MOSFET containing two independent channels.

What is the maximum operating junction temperature?

The maximum operating junction temperature is +150°C.
