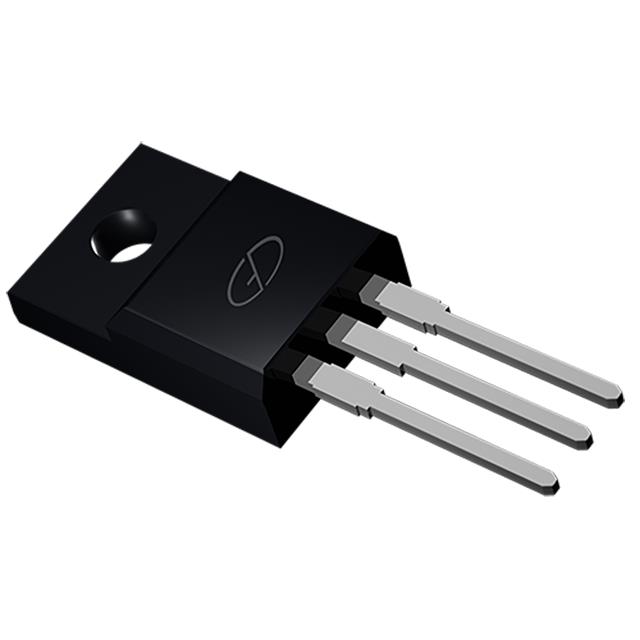

SSFU6511

$1.99

Description：MOSFET, N-CH, SINGLE, 11.5A, 650
Series：-
Mfr：Good-Ark Semiconductor
Package：Tube

SKU:498e4c25a949 Category: Single FETs, MOSFETs Brand: Good-Ark Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SSFU6511 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Good-Ark Semiconductor. Its product description is MOSFET, N-CH, SINGLE, 11.5A, 650. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for SSFU6511

Description：MOSFET, N-CH, SINGLE, 11.5A, 650
Series：-
Mfr：Good-Ark Semiconductor
Package：Tube
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：650 V
Current - Continuous Drain (Id) @ 25°C：11.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：360mOhm @ 7A, 10V
Vgs(th) (Max) @ Id：4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：19 nC @ 10 V
Vgs (Max)：±30V
Input Capacitance (Ciss) (Max) @ Vds：870 pF @ 50 V
FET Feature：-
Power Dissipation (Max)：32.6W (Tc)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Through Hole
Supplier Device Package：TO-220F
Package / Case：TO-220-3 Full Pack

Single FETs, MOSFETs datasheet and documents for SSFU6511

SSFU6511

Single FETs, MOSFETs Overview

The SSFU6511 is a 650V N-Channel MOSFET manufactured by Good-Ark Semiconductor. It features a typical drain-source on-resistance of 300mΩ at VGS=10V and supports a continuous drain current of 11.5A at Tc=25°C. The device utilizes advanced MOSFET process technology to achieve high cell density, low gate charge, and fast switching with reverse body recovery. It is housed in a TO-220F package and is designed for high efficiency switched mode power supplies.

Single FETs, MOSFETs Feature Summary

Advanced MOSFET process technology achieving high cell density
Fast switching and reverse body recovery characteristics
Low on-resistance combined with low gate charge

Single FETs, MOSFETs Applications

High efficiency switched mode power supplies
General purpose power switching applications

Single FETs, MOSFETs Procurement Notes

Verify the specific manufacturer datasheet version when sourcing. Confirm thermal management requirements align with the specified junction-to-case resistance. Ensure operating conditions remain within the absolute maximum ratings for voltage, current, and temperature to maintain device reliability.

Single FETs, MOSFETs Selection Notes

Select this component for designs requiring high voltage blocking capability and moderate current handling. Evaluate thermal performance based on the specified junction-to-ambient resistance. Consider the gate charge parameters for driving circuit design to optimize switching losses in power supply topologies.

Single FETs, MOSFETs Part Context

This part belongs to the family of 650V N-Channel MOSFETs from Good-Ark Semiconductor. These devices are engineered for robust performance in power conversion circuits. The TO-220F package provides a standardized mounting solution for through-hole assembly in industrial and consumer electronics.
