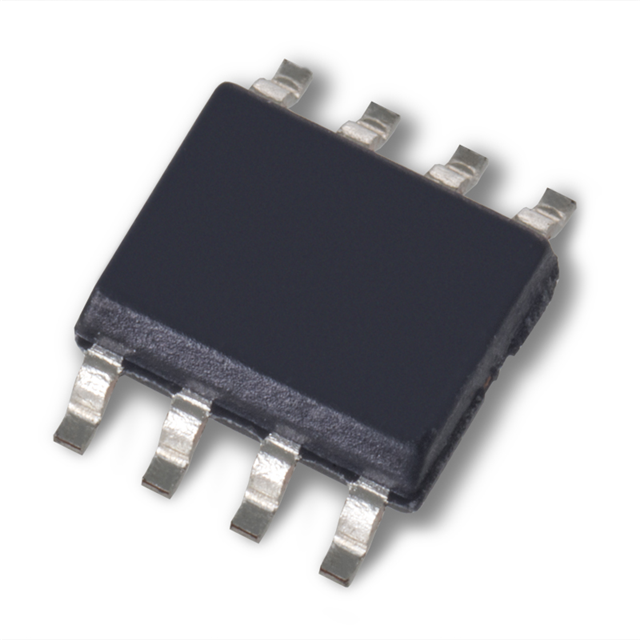

SST403 SOIC 8L-TB

$7.55

Description：JFET 2N-CH 50V 8SOIC
Series：SST403

SKU:a59811517fd4 Category: JFETs Brand: Linear Integrated Systems, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：JFET 2N-CH 50V 8SOIC
Series：SST403
Mfr：Linear Integrated Systems, Inc.
Package：Tube
FET Type：2 N-Channel (Dual)
Voltage - Breakdown (V(BR)GSS)：50 V
Drain to Source Voltage (Vdss)：50 V
Current - Drain (Idss) @ Vds (Vgs=0)：500 µA @ 10 V
Current Drain (Id) - Max：-
Voltage - Cutoff (VGS off) @ Id：500 mV @ 1 nA
Input Capacitance (Ciss) (Max) @ Vds：8pF @ 15V
Resistance - RDS(On)：-
Power - Max：300 mW
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：8-SOIC (0.154", 3.90mm Width)
Supplier Device Package：8-SOIC
Grade：-
Qualification：-

Download product information

SST403 SOIC 8L-TB

Overview

The SST403 SOIC 8L-TB is a dual N-channel JFET amplifier manufactured by Linear Integrated Systems, Inc. It features a surface-mount 8-SOIC package with a maximum drain-source voltage of 50 V and a power dissipation rating of 300 mW. The device operates within a temperature range of -55°C to 150°C junction temperature. This component is designed for precision applications requiring low noise and low drift characteristics in small-signal processing.

Feature Summary

Dual N-channel JFET architecture for precision signal amplification
Low-noise and low-drift monolithic design
Surface-mount 8-SOIC packaging for compact integration

Applications

Precision analog signal conditioning circuits
Low-noise audio preamplifiers
Instrumentation amplifier input stages

Procurement Notes

Verify the specific suffix (TB) against official Linear Integrated Systems documentation to confirm tape-and-reel specifications. Ensure compatibility with standard 8-SOIC footprint designs. Cross-reference datasheet thermal limits with system operating conditions to prevent exceeding the 300 mW power dissipation rating during procurement validation.

Selection Notes

Select this component when dual N-channel JFET inputs are required for high-impedance signal sources. Consider the 50 V voltage limit and 300 mW power rating for circuit design constraints. Evaluate the -55°C to 150°C operating range against environmental requirements. Compare against other SST/U401 series variants for specific noise or bandwidth needs.

Part Context

Part of the SST/U401 series of low-noise, low-drift monolithic dual N-channel JFET amplifiers from Linear Integrated Systems. Designed for precision applications where signal integrity and minimal drift are critical. Manufactured using discrete semiconductor fabrication processes optimized for small-signal performance.

Replacement Considerations

Consult official Linear Integrated Systems substitution guides for verified equivalents. No public substitute part numbers are confirmed in available documentation.
