STD12NF06L-1

Single FETs, MOSFETs Overview

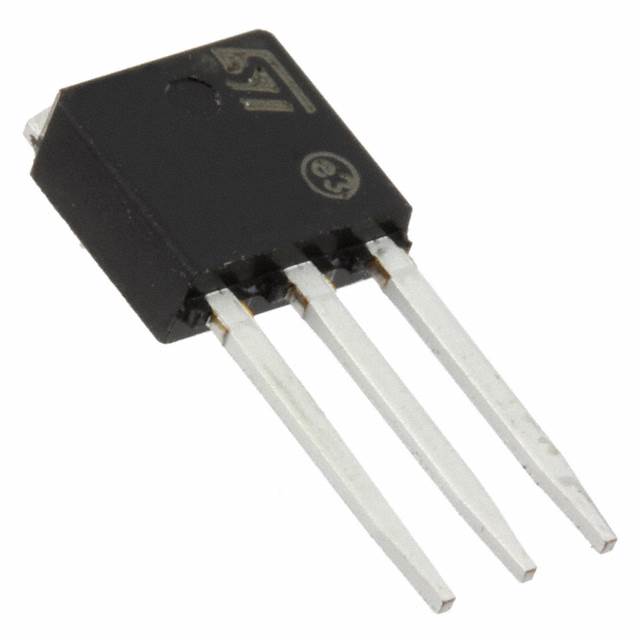

The STD12NF06L-1 is an N-channel Power MOSFET manufactured by STMicroelectronics using the STripFET II process. It features a 60 V drain-source breakdown voltage and supports a continuous drain current of 12 A. The device offers a typical on-resistance of 80 mOhms and a gate charge of 10 nC, with a maximum gate-source voltage of ±16 V. It operates within a temperature range of -55 °C to +175 °C and dissipates up to 30 W of power. Packaged in a TO-251-3 (IPAK) through-hole format, it includes a single enhancement-mode channel.

Single FETs, MOSFETs Feature Summary

• Utilizes STripFET II technology to minimize input capacitance and gate charge for high-efficiency switching.
• Provides exceptional dv/dt capability suitable for demanding power conversion environments.
• Designed as a primary switch for advanced isolated DC-DC converters requiring low gate charge driving.

Single FETs, MOSFETs Applications

• Primary switching in high-efficiency isolated DC-DC converters
• Telecommunications power supply circuits
• Computer application power management systems

Single FETs, MOSFETs Procurement Notes

Verify the specific package variant, as datasheets may reference IPAK or TO-251-3 designations for this part number. Confirm RoHS compliance status directly with the manufacturer or authorized distributors prior to ordering. Ensure the procurement documentation matches the exact STD12NF06L-1 identifier to avoid substitution errors with similar series components.

Single FETs, MOSFETs Selection Notes

Select this component when designing isolated DC-DC converters that require low gate drive power consumption. The 60 V rating and 12 A current capacity suit medium-voltage applications. The TO-251-3 package facilitates through-hole mounting for robust mechanical connections. Consider the 175 °C junction temperature limit for high-thermal environments.

Single FETs, MOSFETs Part Context

This device belongs to the STripFET II family of N-channel power MOSFETs from STMicroelectronics. The series targets industrial and automotive sectors, offering a balance of low on-resistance and fast switching speeds. The STD12NF06L-1 specifically addresses applications needing efficient power handling in compact through-hole packages.

Single FETs, MOSFETs Replacement Considerations

Consult official STMicroelectronics cross-reference lists for verified substitutes. Generic equivalents may not replicate the specific STripFET II characteristics or dv/dt performance required for isolated converter designs.
