STGWA40S120DF3

$3.52

Description：IGBT TRENCH FS 1200V 80A TO-247
Series：-

SKU:999e95be603f Category: Single IGBTs Brand: STMicroelectronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT TRENCH FS 1200V 80A TO-247
Series：-
Mfr：STMicroelectronics
Package：Tube
IGBT Type：Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：80 A
Current - Collector Pulsed (Icm)：160 A
Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 40A
Power - Max：468 W
Switching Energy：1.43mJ (on), 3.83mJ (off)
Input Type：Standard
Gate Charge：129 nC
Td (on/off) @ 25°C：35ns/148ns
Test Condition：600V, 40A, 15Ohm, 15V
Reverse Recovery Time (trr)：355 ns
Operating Temperature：-55°C ~ 175°C (TJ)
Mounting Type：Through Hole

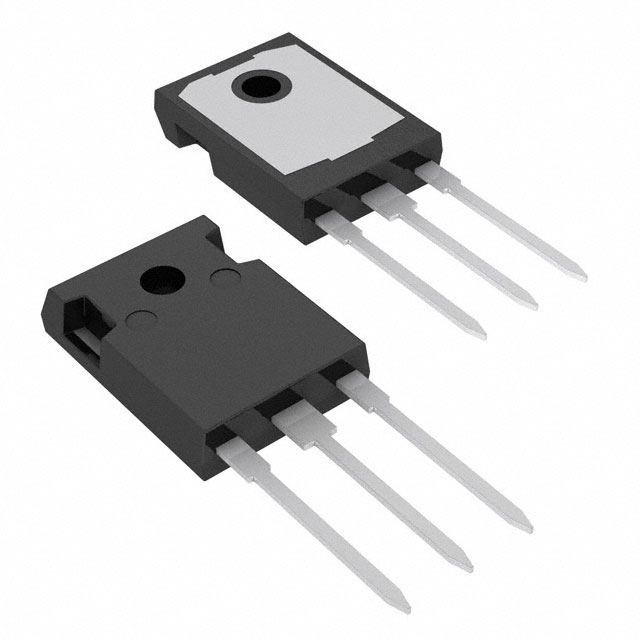

Package / Case：TO-247-3
Supplier Device Package：TO-247-3
Grade：-
Qualification：-

Download product information

STGWA40S120DF3

Overview

The STGWA40S120DF3 is an automotive-grade trench gate field-stop IGBT from the MS series, designed for low-loss applications. It features a collector-emitter maximum voltage (VCEO) of 1.2 kV and a continuous collector current (Ic) of 80 A at 25°C. The device exhibits a typical collector-emitter saturation voltage (VCE(sat)) of 1.95 V. It operates within a junction temperature range of -55°C to +175°C and supports a power dissipation (Pd) of 536 W. The component is housed in a TO-247-3 through-hole package and holds AEC-Q101 qualification.

Feature Summary

Automotive-grade reliability with AEC-Q101 qualification
Trench gate field-stop structure for low conduction losses
Positive VCE(sat) temperature coefficient for safer paralleling

Applications

Automotive traction inverters
On-board chargers (OBC)
DC-DC converters for electric vehicles

Procurement Notes

Verify the specific suffix AG against official STMicroelectronics documentation to confirm automotive compliance and parameter tolerances. Ensure the ordering part number matches the exact electrical characteristics required for the target application circuit design.

Selection Notes

Select this component when high current handling up to 80 A and robust short-circuit withstand capability are required in automotive environments. Consider the thermal resistance and package type TO-247-3 for appropriate heatsinking solutions to maintain junction temperatures within the specified operational limits.

Part Context

This IGBT belongs to the MS series, which balances performance and efficiency. It utilizes advanced trench gate field-stop technology to minimize switching and conduction losses, making it suitable for high-frequency power conversion systems where energy efficiency is critical.

Replacement Considerations

STGW25S120DF3 offers similar technology but lower current ratings. STGWA40M120DF3 is a non-automotive M-series alternative with comparable voltage and current specifications.
