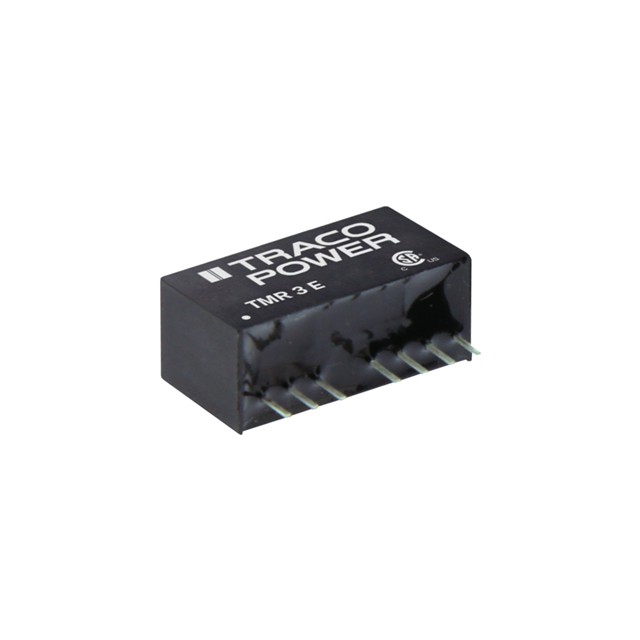

TMR 3-2422E

TMR 3-2422E is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER +/-12V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TMR 3-2422E

• Description：DC DC CONVERTER +/-12V 3W
• Series：TMR 3E (3W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：125mA, 125mA
• Power (Watts)：3 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, SCP
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：83%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module, 7 Leads
• Size / Dimension：0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for TMR 3-2422E
