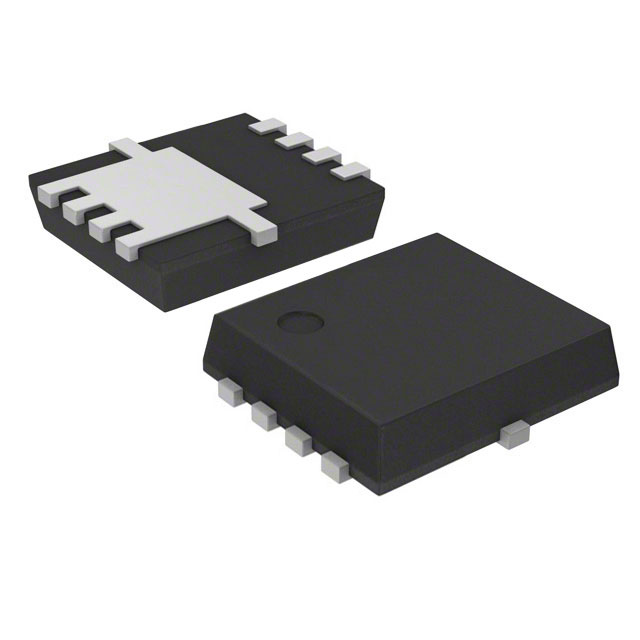

TPCA8045-H(T2L1,VM is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Toshiba Semiconductor and Storage. Its product description is MOSFET N-CH 40V 46A 8SOP. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for TPCA8045-H(T2L1,VM
- Description：MOSFET N-CH 40V 46A 8SOP
- Series：U-MOSVI-H
- Mfr：Toshiba Semiconductor and Storage
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：40 V
- Current - Continuous Drain (Id) @ 25°C：46A (Ta)
- Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
- Rds On (Max) @ Id, Vgs：3.6mOhm @ 23A, 10V
- Vgs(th) (Max) @ Id：2.3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs：90 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：7540 pF @ 10 V
- FET Feature：-
- Power Dissipation (Max)：1.6W (Ta), 45W (Tc)
- Operating Temperature：150°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Supplier Device Package：8-SOP Advance (5x5)
- Package / Case：8-PowerVDFN
Single FETs, MOSFETs datasheet and documents for TPCA8045-H(T2L1,VM
Single FETs, MOSFETs Overview
TPCA8045-H(T2L1,VM) is an N-channel silicon power MOSFET manufactured by Toshiba Semiconductor and Storage. It features a maximum drain-source voltage of 40 V and a continuous drain current rating of 20 A. The device exhibits a low on-resistance of 0.0036 Ω at a gate-source voltage of 10 V. Packaged in the SOP Advance format with five terminals, it incorporates a built-in diode configuration. The component is RoHS compliant and designed for surface-mount applications requiring high integration.
Single FETs, MOSFETs Feature Summary
- SOP Advance package design enables compact mounting and high-density circuit integration
- Built-in diode structure enhances circuit design flexibility
- Low on-resistance characteristics reduce end-product power consumption
Single FETs, MOSFETs Applications
- Lithium-ion secondary battery protection circuits
- Notebook PC power supply circuits
- Motor driver power driver circuits
Single FETs, MOSFETs Procurement Notes
Verify the specific ordering suffix against official Toshiba documentation to confirm exact packaging and handling specifications. Ensure the selected variant matches the required thermal and electrical constraints for the target application. Cross-reference datasheet parameters with system requirements prior to procurement.
Single FETs, MOSFETs Selection Notes
Select this component for designs requiring a 40 V breakdown voltage and 20 A current capacity in a small outline package. Evaluate the 0.0036 Ω on-resistance against thermal management capabilities. Confirm compatibility with standard surface-mount assembly processes and verify that the integrated diode meets the circuit's reverse current requirements.
Single FETs, MOSFETs Part Context
The TPCA8045-H belongs to the TPC series within Toshiba’s Low-Voltage Drain-Source Switching MOSFET portfolio. This series utilizes U-MOS technology to achieve low on-resistance and fast switching speeds. The SOP Advance package provides a balance between thermal performance and footprint reduction for portable electronics.
Single FETs, MOSFETs Replacement Considerations
Consult official Toshiba obsolescence notices for confirmed substitute part numbers. Verify pinout compatibility and electrical parameter equivalence before substituting.
