TSB612IDT

Instrumentation, Op Amps, Buffer Amps Overview

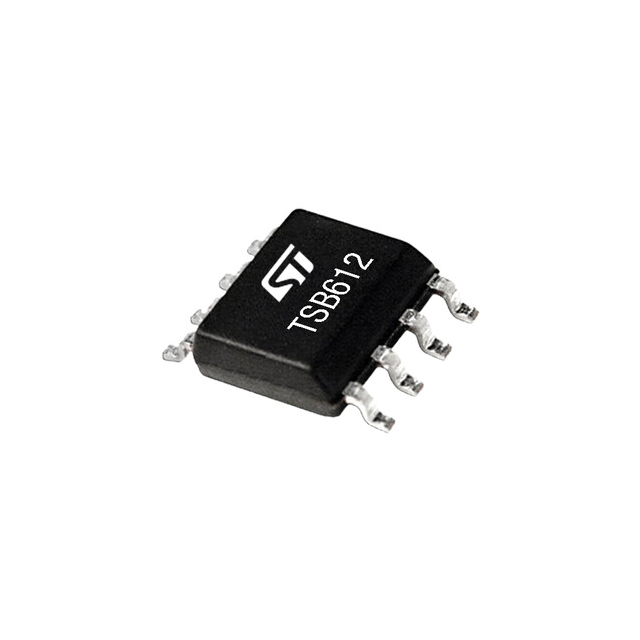

The TSB612IDT is a dual-channel operational amplifier from STMicroelectronics, housed in an SO-8 surface-mount package. It operates within a supply voltage range of 2.7 V to 36 V and supports an extended temperature range from -40 °C to 125 °C. The device features a typical gain bandwidth product of 560 kHz at 36 V, with a maximum input offset voltage of 1 mV. Supply current consumption is limited to 125 μA per amplifier at the maximum operating voltage. It provides rail-to-rail output capability and includes high electrostatic discharge tolerance.

Instrumentation, Op Amps, Buffer Amps Feature Summary

• Rail-to-rail output capability for maximizing dynamic range
• Extended supply voltage operation up to 36 V
• High electrostatic discharge protection rated at 4 kV HBM
• Automotive qualification compliant with AEC-Q100 standards

Instrumentation, Op Amps, Buffer Amps Applications

• Industrial control systems
• Power supply signal conditioning
• Automotive electronic modules

Instrumentation, Op Amps, Buffer Amps Procurement Notes

Verify that the specific order code matches the required package type, as the TSB612 family is available in multiple configurations including SOT23-5 and MiniSO8. Confirm that the suffix indicates tape and reel packing if automated assembly is intended. Ensure the component meets the necessary automotive qualification requirements for the target application environment.

Instrumentation, Op Amps, Buffer Amps Selection Notes

Select this component when a wide single-supply voltage range up to 36 V is required alongside low power consumption. It is suitable for applications needing rail-to-rail output swing without requiring negative supply rails. Consider the thermal resistance characteristics of the SO-8 package for heat dissipation in dense PCB layouts.

Instrumentation, Op Amps, Buffer Amps Part Context

This part belongs to the TSB61x family of low-power, rail-to-rail output operational amplifiers designed for industrial and automotive environments. The family includes single-channel variants like the TSB611 and dual-channel versions such as the TSB612. These devices are engineered to provide excellent speed-to-power ratios across a broad temperature spectrum.

Instrumentation, Op Amps, Buffer Amps Replacement Considerations

TSB611ILT

Instrumentation, Op Amps, Buffer Amps FAQ

Does the TSB612IDT support input common-mode voltages that include ground?

Yes, the input common-mode voltage range extends from (VCC-) - 0.1 V to (VCC+) - 1 V, allowing it to include ground potential.

What is the maximum junction temperature for the TSB612IDT?

The maximum junction temperature is specified as 150 °C.
