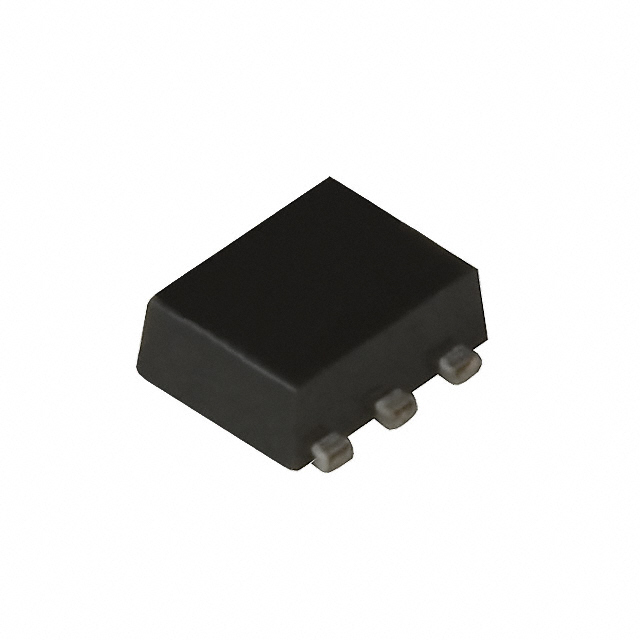

UPA895TS-A

Description：RF TRANS 2NPN 5.5V 6.5GHZ 6SMINI
Series：-

SKU:69d6dfaa80e8 Category: Bipolar RF Transistors Brand: CEL

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF TRANS 2NPN 5.5V 6.5GHZ 6SMINI
Series：-
Mfr：CEL
Package：Bulk
Transistor Type：2 NPN (Dual)
Voltage - Collector Emitter Breakdown (Max)：5.5V
Frequency - Transition：6.5GHz
Noise Figure (dB Typ @ f)：1.9dB ~ 2.5dB @ 2GHz
Gain：-
Power - Max：130mW
DC Current Gain (hFE) (Min) @ Ic, Vce：100 @ 5mA, 1V
Current - Collector (Ic) (Max)：100mA
Operating Temperature：150°C (TJ)
Mounting Type：Surface Mount
Package / Case：6-SMD, Flat Leads
Supplier Device Package：6-Super Lead-Less MiniMold
Grade：-
Qualification：-

Download product information

UPA895TS-A

Overview

The UPA895TS-A is a dual NPN bipolar RF transistor manufactured by CEL. It operates with a maximum collector-emitter voltage of 5.5V and supports frequencies up to 6.5GHz. The device features a surface-mount 6-Super Lead-Less MiniMold package, designed for high-frequency applications requiring low power consumption of 130mW.

Feature Summary

Dual NPN configuration within a compact surface-mount package
High-frequency operation capability up to 6.5GHz
Low voltage operation suitable for portable systems

Applications

RF signal processing circuits
Wireless communication modules
High-frequency amplification stages

Procurement Notes

Verify the specific manufacturer documentation for the UPA895TS-A to confirm current availability status, as some sources indicate potential obsolescence or limited stock conditions. Ensure that the 6-SMD flat lead package matches your PCB footprint requirements before finalizing procurement decisions.

Selection Notes

Select this component when designing circuits requiring dual NPN transistors with high-speed RF performance at low voltages. Consider the 6.5GHz frequency limit and 130mW power dissipation constraints. The Super Lead-Less MiniMold package offers space efficiency for dense layouts.

Part Context

This part belongs to CEL's discrete semiconductor product line, specifically within the Bipolar (BJT) - RF category. It serves as a specialized active component for radio frequency applications, distinct from logic or power switching devices.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official manufacturer channels for direct equivalents or pin-compatible alternatives.
