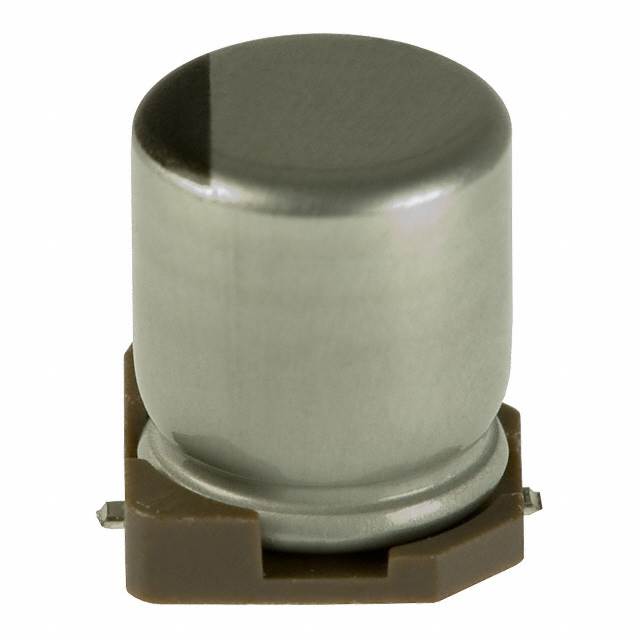

UUD1A221MCR1GS

UUD1A221MCR1GS is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 220UF 20% 10V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for UUD1A221MCR1GS

• Description：CAP ALUM 220UF 20% 10V SMD
• Series：UUD
• Mfr：Nichicon
• Package：Tape & Reel (TR)
• Capacitance：220 µF
• Tolerance：±20%
• Voltage - Rated：10 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：2000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：AEC-Q200
• Applications：Automotive
• Ripple Current @ Low Frequency：140 mA @ 120 Hz
• Ripple Current @ High Frequency：280 mA @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.248" Dia (6.30mm)
• Height - Seated (Max)：0.315" (8.00mm)
• Surface Mount Land Size：0.260" L x 0.260" W (6.60mm x 6.60mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD
• Impedance：340 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for UUD1A221MCR1GS
