V40PWL63C-M3/I

Diode Arrays Overview

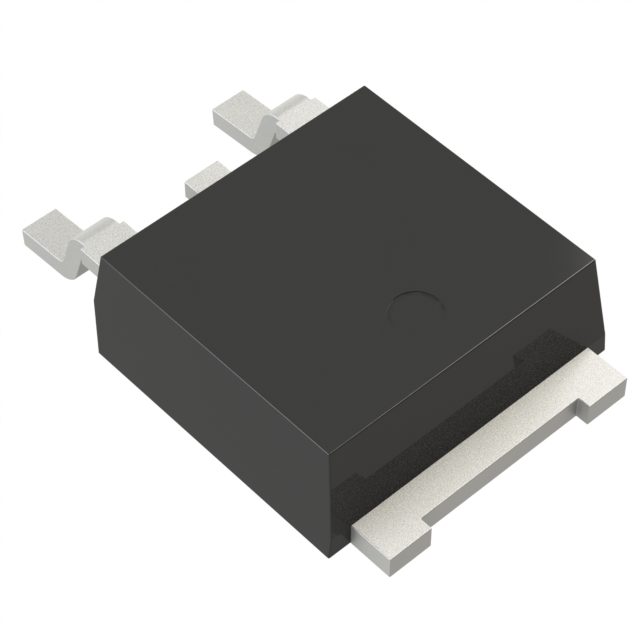

The V40PWL63C-M3/I is a high current density surface-mount TMBS rectifier in a SlimDPAK (TO-252AE) package. It features a dual anode common cathode configuration with a maximum average forward rectified current of 40 A per device and a peak repetitive reverse voltage of 60 V. The component exhibits ultra-low forward voltage characteristics, reaching 0.34 V at 5 A and 0.56 V at 20 A when the junction temperature is 125 °C. It supports a peak forward surge current of 240 A and operates within a junction temperature range of -40 to +150 °C.

Diode Arrays Feature Summary

• Utilizes Trench MOS Schottky technology for low forward voltage drop and reduced power losses
• Features a very low profile typical height of 1.3 mm suitable for automated placement
• Meets MSL level 1 requirements with a maximum peak reflow temperature of 260 °C

Diode Arrays Applications

• Low voltage high frequency DC/DC converters
• Freewheeling diodes
• Polarity protection applications

Diode Arrays Procurement Notes

Verify the specific ordering code against official Vishay documentation before procurement. Confirm that the base part number suffix matches the required halogen-free and RoHS-compliant specifications. Ensure the selected variant aligns with the intended application environment regarding thermal resistance and mounting pad area requirements.

Diode Arrays Selection Notes

Select this component for designs requiring high efficiency operation and low power dissipation in compact surface-mount layouts. Consider the thermal resistance from junction to ambient when determining heatsinking needs. Validate the forward voltage characteristics against the specific load current and operating temperature conditions of the target circuit.

Diode Arrays Part Context

This device belongs to the eSMP series of high current density surface-mount rectifiers manufactured by Vishay General Semiconductor. It represents an evolution in Trench MOS Barrier Schottky technology designed to minimize forward voltage while maintaining robust surge current capabilities in slim packages.

Diode Arrays Replacement Considerations

V40PWM60C-M3/I

Diode Arrays FAQ

What is the typical forward voltage at 5 A?

The typical instantaneous forward voltage is 0.34 V at 5 A when the junction temperature is 125 °C.

Is this component qualified for automotive applications?

Yes, the AEC-Q101 qualified version is available with the HM3 ordering suffix.

What is the maximum junction temperature?

The maximum operating junction temperature is 150 °C.
