V60DM100CHM3/I

$1.74

Description：DIODE ARR SCHOT 100V 30A TO263AC
Series：eSMP®, TMBS®

SKU:fe970ee6a5be Category: Diode Arrays Brand: Vishay General Semiconductor - Diodes Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

V60DM100CHM3/I is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Vishay General Semiconductor - Diodes Division. Its product description is DIODE ARR SCHOT 100V 30A TO263AC. Review the specifications below when checking this part for your BOM.

Diode Arrays specifications for V60DM100CHM3/I

Description：DIODE ARR SCHOT 100V 30A TO263AC
Series：eSMP®, TMBS®
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Reel (TR),Cut Tape (CT)
Diode Configuration：1 Pair Common Cathode
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：100 V
Current - Average Rectified (Io) (per Diode)：30A
Voltage - Forward (Vf) (Max) @ If：860 mV @ 30 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：800 µA @ 100 V
Operating Temperature - Junction：-40°C ~ 175°C
Mounting Type：Surface Mount
Package / Case：TO-263-3, D2PAK (2 Leads + Tab), Variant
Supplier Device Package：TO-263AC (SMPD)
Grade：Automotive
Qualification：AEC-Q101

Diode Arrays datasheet and documents for V60DM100CHM3/I

V60DM100CHM3/I

Diode Arrays Overview

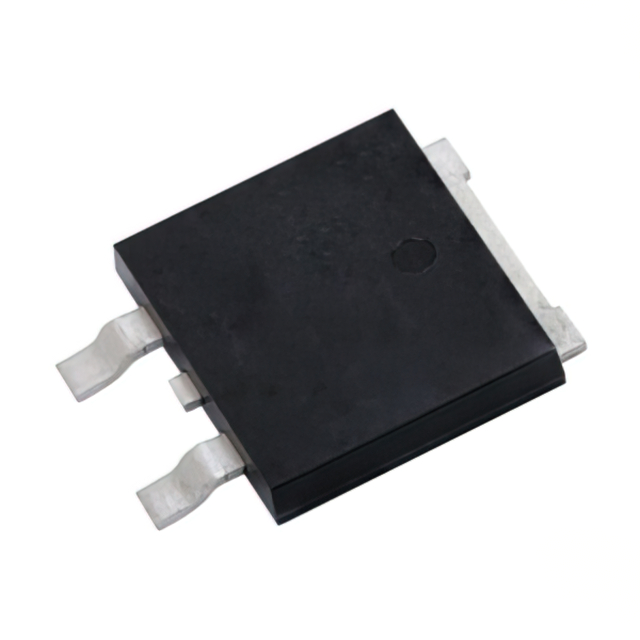

The V60DM100CHM3/I is a dual high-voltage Trench MOS Barrier Schottky (TMBS) rectifier from Vishay General Semiconductor. It features an SMPD (TO-263AC) package with a common cathode configuration. The device supports a maximum repetitive peak reverse voltage of 100 V and a total maximum average forward rectified current of 60 A, divided into 30 A per diode. It exhibits ultra-low forward voltage characteristics, reaching 0.40 V at an IF of 5.0 A and 125 °C. The component operates within a junction temperature range of -40 to +175 °C and includes AEC-Q101 qualification.

Diode Arrays Feature Summary

Utilizes Trench MOS Schottky technology for low forward voltage drop and reduced power losses
Features a very low profile typical height of 1.7 mm suitable for automated placement
Includes AEC-Q101 automotive qualification for enhanced reliability in demanding environments

Diode Arrays Applications

High frequency DC/DC converters
Switching power supplies
Freewheeling diodes
OR-ing diode circuits
Reverse battery protection

Diode Arrays Procurement Notes

Verify the HM3 suffix confirms AEC-Q101 automotive qualification status before procurement. Ensure the ordering code matches the specific tape and reel delivery mode required for your assembly line. Confirm compliance with halogen-free and RoHS standards as specified in the datasheet documentation.

Diode Arrays Selection Notes

Select this component for applications requiring high efficiency and low thermal dissipation due to its ultra-low VF characteristics. Consider the SMPD package dimensions for PCB layout constraints. Validate that the 100 V rating aligns with the system's peak reverse voltage requirements under all operating conditions.

Diode Arrays Part Context

This part belongs to the eSMP series of high-current density and voltage Schottky rectifiers designed by Vishay. These devices are engineered for robust performance in demanding power-conversion applications. The TMBS technology combines the benefits of Schottky diodes with the structural advantages of trench MOS processes.
