Product Detailed Parameters
- Description：MTP - HALF BRIDGE IGBT
- Series：-
- Mfr：Vishay General Semiconductor - Diodes Division
- Package：Tube
- IGBT Type：Trench Field Stop
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：2.65V @ 15V, 40A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Through Hole
- Package / Case：12-MTP Module
- Supplier Device Package：12-MTP
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：75 A
- Power - Max：305 W
- Current - Collector Cutoff (Max)：50 µA
- Input Capacitance (Cies) @ Vce：3.2 nF @ 25 V
Download product information
Overview

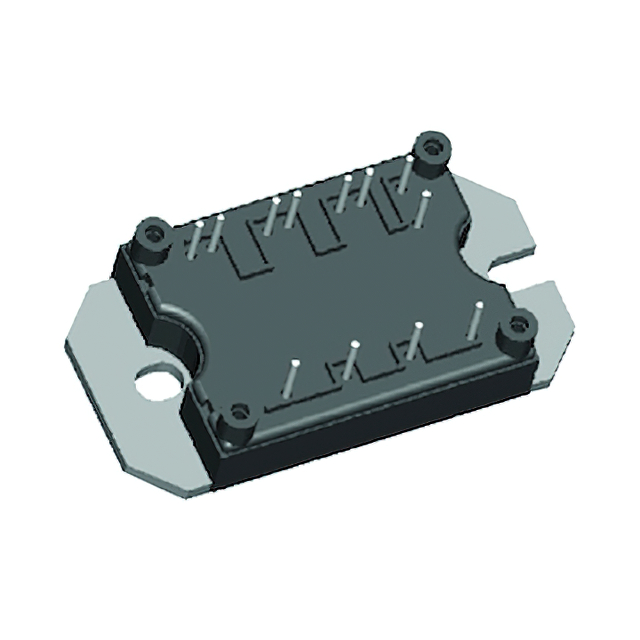

The VS-40MT120PHAPbF is a half bridge IGBT module utilizing trench gate field stop technology. It features a 1200 V collector-emitter breakdown voltage and a continuous collector current of 75 A at 25 °C case temperature. The typical saturation voltage is 2.24 V at 40 A, with an antiparallel HEXFRED diode providing ultrasoft reverse recovery. Designed for industrial applications, it supports switching frequencies from 8 kHz to 30 kHz and includes a 5 μs short circuit capability.
Feature Summary
- Trench gate field stop technology with positive VCE(on) temperature coefficient
- HEXFRED antiparallel diodes featuring ultrasoft reverse recovery and low forward voltage
- Al2O3 DBC substrate enabling very low junction-to-case thermal resistance
- Very low stray inductance design optimized for high-speed operation
Applications
- Welding equipment
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
Procurement Notes
Verify the component against the official Vishay datasheet document number 96762 to confirm technical specifications. Ensure that the ordering suffix matches the required lead-free termination and Al2O3 substrate configuration. Cross-reference the manufacturer part number with authorized distribution channels to validate authenticity and traceability before finalizing procurement orders.
Selection Notes
Select this module for designs requiring benchmark efficiency above 20 kHz and rugged ultrafast performance. It is suitable for applications demanding excellent current sharing in parallel operations and low electromagnetic interference. Verify that the operating frequency falls within the specified 8 kHz to 30 kHz range and that the thermal management system can handle the rated power dissipation.
Part Context
This component belongs to the MTP series of half bridge modules from Vishay Semiconductors. It is specifically engineered for industrial-level qualification and offers direct mounting to heatsinks via PCB solderable terminals. The package utilizes a robust mechanical design with UL approval file E78996.
Replacement Considerations
Consult the official Vishay documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' modules without validating electrical parameters and pin configurations.
