Product Detailed Parameters
- Description：IGBT MOD 1200V 22A 89W EMIPAK-2B
- Series：-
- Mfr：Vishay General Semiconductor - Diodes Division
- Package：Bulk
- IGBT Type：Trench
- Configuration：-
- Vce(on) (Max) @ Vge, Ic：3.03V @ 15V, 15A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：EMIPAK-2B
- Supplier Device Package：EMIPAK-2B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：22 A
- Power - Max：89 W
- Current - Collector Cutoff (Max)：75 µA
- Input Capacitance (Cies) @ Vce：1.07 nF @ 30 V
Download product information
Overview

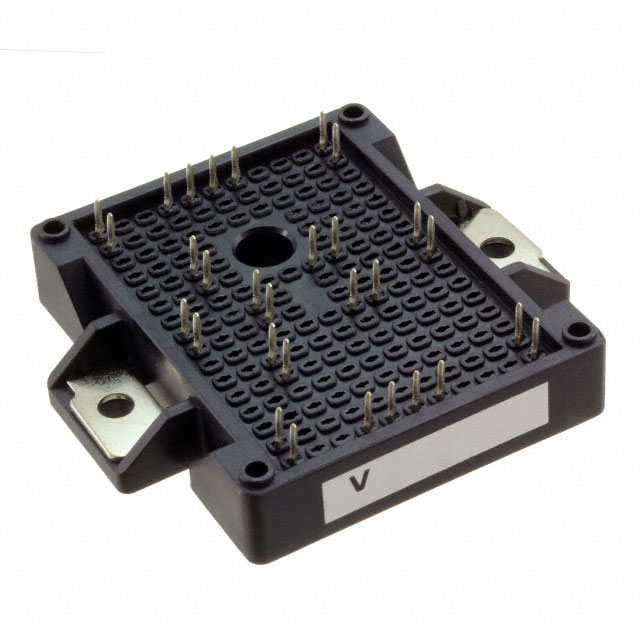

The VS-ETL015Y120H is a power module utilizing EMIPAK-2B packaging with PressFit pins, designed for double interleaved boost converter applications. It integrates Trench IGBT technology and HEXFRED clamping diodes. The PFC IGBT supports a collector-emitter voltage of 1200 V and a continuous current of 15 A at TC = 80 °C. The bypass diode handles up to 62 A at the same temperature with a 1200 V rating. The module includes an integrated NTC thermistor (5 kΩ at 25 °C) and offers a 10 μs short circuit capability.
Feature Summary
- EMIPAK-2B package with exposed Al2O3 substrate for low thermal resistance
- PressFit pins technology for secure mounting without screws
- Integrated NTC thermistor for precise junction temperature monitoring
- Optimized layout minimizing stray parameters for improved EMI performance
Applications
- Double interleaved boost converters
- Power factor correction circuits
- High-efficiency DC-DC conversion systems
Procurement Notes
Verify component authenticity by cross-referencing the datasheet document number 94858 and revision date. Confirm that the ordering suffix matches the specific die technologies indicated in the product summary. Ensure the receiving facility has appropriate handling protocols for PressFit modules to prevent mechanical damage during installation.
Selection Notes
Select this module when designing high-power density boost converters requiring low internal inductance and fast switching speeds. Evaluate thermal management requirements based on the specified junction-to-case thermal resistance values. Verify that the system operating frequency falls within the recommended range of 8 kHz to 30 kHz for optimal efficiency.
Part Context
This component belongs to Vishay's EMIPAK-2B series of press-fit power modules. It combines trench IGBT switches with HEXFRED rectifier diodes in a single integrated solution. The design targets applications demanding high reliability and simplified assembly through the elimination of traditional screw-mounting hardware.
Replacement Considerations
No direct public substitute part numbers are documented in the official datasheet. Designers must evaluate alternative modules based on matching electrical ratings, thermal characteristics, and physical footprint compatibility.
