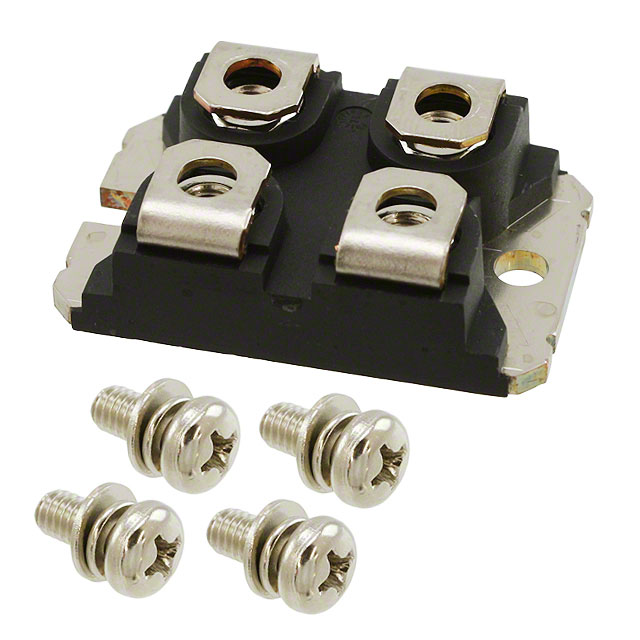

VS-GB90SA120U

Description：IGBT MOD 1200V 149A 862W SOT227
Series：-

SKU:1cbaeeb5d3f2 Category: IGBT Modules Brand: Vishay General Semiconductor - Diodes Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 1200V 149A 862W SOT227
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tube
IGBT Type：NPT
Configuration：Single
Vce(on) (Max) @ Vge, Ic：3.9V @ 15V, 75A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：SOT-227-4
Supplier Device Package：SOT-227
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：149 A
Power - Max：862 W
Current - Collector Cutoff (Max)：250 µA
Input Capacitance (Cies) @ Vce：-

Download product information

VS-GB90SA120U

Overview

The VS-GB90SA120U is a single IGBT module manufactured by Vishay General Semiconductor - Diodes Division. It features a 1200V collector-emitter voltage rating and supports a continuous collector current of 149A. The device delivers a maximum power dissipation capacity of 862W. It utilizes the SOT-227 package for thermal management and electrical isolation. The component requires a minimum gate-emitter voltage of 15V to achieve its specified on-state characteristics, ensuring reliable switching performance in high-power applications.

Feature Summary

High-voltage insulation with 1200V blocking capability
Robust current handling up to 149A continuous operation
Efficient thermal design supporting 862W power dissipation
Standardized SOT-227 mechanical form factor

Applications

Industrial motor drive systems
Inverter circuits for renewable energy
High-power switching applications

Procurement Notes

Verify the specific datasheet revision and RoHS compliance status prior to ordering. Confirm that the SOT-227 mounting interface matches the target PCB or heatsink design. Ensure gate drive circuitry can supply the required 15V minimum voltage for proper saturation. Check for any lead-free certification documentation if environmental regulations apply to the end product assembly process.

Selection Notes

Select this module when applications demand high voltage tolerance combined with significant current capacity. The 1200V rating suits medium-voltage industrial environments. Consider the 862W dissipation limit for thermal management planning. The SOT-227 package offers a balance between power density and ease of installation compared to larger chassis-mount alternatives.

Part Context

This component belongs to Vishay's general semiconductor diode and power module division. It represents a discrete insulated gate bipolar transistor solution designed for robust industrial use. The part number structure indicates specific voltage and current ratings within the manufacturer's broader portfolio of power electronics components.
