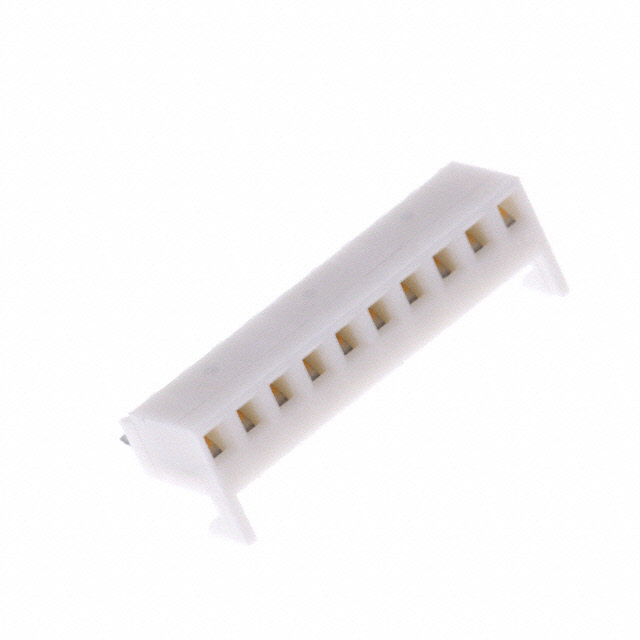

22182101

$1.87

Description：CONN RCPT 10POS 0.1 GOLD PCB
Series：KK254, 4455
Mfr：Molex
Package：Tray

SKU:fa427b1a011a Category: Headers, Receptacles, Female Sockets Brand: Molex

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

22182101 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is CONN RCPT 10POS 0.1 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 22182101

Description：CONN RCPT 10POS 0.1 GOLD PCB
Series：KK254, 4455
Mfr：Molex
Package：Tray
Connector Type：Receptacle
Contact Type：Female, Cat Ear
Style：Board to Board or Cable
Number of Positions：10
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：15.0µin (0.38µm)
Insulation Color：White
Insulation Height：0.311" (7.90mm)
Contact Length - Post：0.132" (3.35mm)
Operating Temperature：-40°C ~ 80°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：Board Hooks
Current Rating (Amps)：2.5A
Voltage Rating：250VAC

Headers, Receptacles, Female Sockets datasheet and documents for 22182101

22182101

Headers, Receptacles, Female Sockets Overview

Molex part number 22182101 is a Mini-Change M12 circular connector component, specifically an A-coded male plug assembly designed for industrial automation and sensor applications. The connector features a robust metal housing with nickel plating to ensure durability in harsh environments. It utilizes a screw-mount termination method for secure cable attachment. The unit supports single-pair Ethernet (SPE) or standard I/O signal transmission depending on the specific mating configuration. Key electrical ratings include a maximum voltage of 30V DC and a current capacity of 4A per contact. The design complies with IP67 ingress protection standards when mated, ensuring resistance to dust and water jets. The operating temperature range spans from -40°C to +85°C, suitable for demanding factory settings.
