2N7002KDWS-TP

Overview

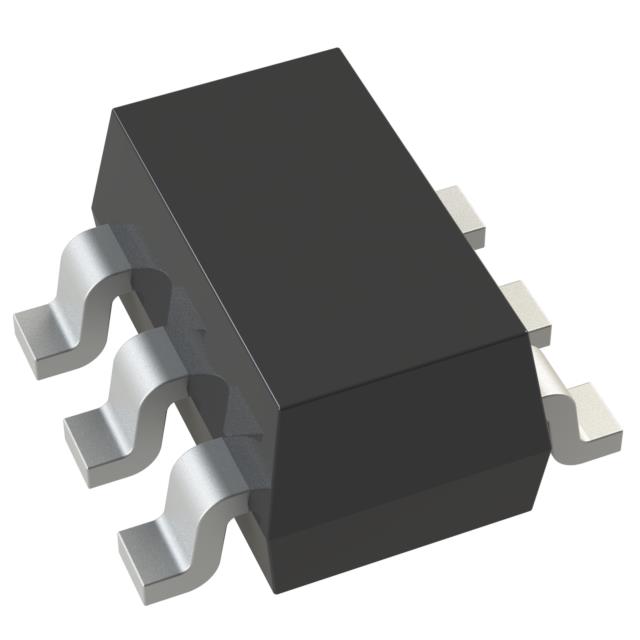

The MCC 2N7002KDWS-TP is an N-channel MOSFET manufactured by Micro Commercial Components. It utilizes silicon technology and is housed in a SOT-363S surface-mount package. Key electrical specifications include a drain-source breakdown voltage of 60 V, a continuous drain current of 220 mA, and a maximum power dissipation of 300 mW. The device features a gate-source threshold voltage of 2.5 V, a gate charge of 880 pC, and a drain-source on-resistance of 3 Ohms. It operates within a temperature range from -55 C to +150 C.

Feature Summary

• Dual N-channel configuration integrated into a compact SOT-363S surface-mount package for space-constrained designs.
• Silicon-based construction supporting high-temperature operation up to 150 C junction temperature.
• Enhancement-mode functionality with defined gate threshold characteristics for logic-level control.

Applications

• Battery protection circuits requiring dual-channel isolation or switching.
• Load switch applications utilizing the compact dual-transistor footprint.
• Power management systems needing small-form-factor N-channel switching elements.

Procurement Notes

Verify the specific datasheet version for the 2N7002KDWS-TP prior to ordering, as manufacturer documentation may vary. Confirm that the SOT-363S package dimensions align with your PCB layout requirements. Ensure that the 220 mA continuous current rating meets your circuit's thermal and electrical demands under actual operating conditions. Cross-reference the part number with official Micro Commercial Components catalogs to confirm current production status and availability constraints.

Selection Notes

Select this component when a dual N-channel MOSFET solution is required in a minimal footprint. The 60 V rating suits low-voltage DC applications. Compare the 3 Ohm on-resistance against single-channel alternatives if higher current handling per channel is needed. Consider the 300 mW power dissipation limit for thermal management planning. Verify compatibility with standard SOT-363S footprints during the design phase.

Part Context

This part belongs to the Micro Commercial Components discrete transistor portfolio, specifically within the N-channel MOSFET category. It represents a dual-channel variant designed to replace two separate single-channel devices in compact layouts. The product line focuses on cost-effective silicon solutions for consumer and industrial electronics.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official Micro Commercial Components documentation for recommended equivalents or verify pin-compatible alternatives through independent distributor databases.
