Product Detailed Parameters
- Description：IC
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Tape & Box (TB)
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：60 V
- Current - Continuous Drain (Id) @ 25°C：260mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
- Rds On (Max) @ Id, Vgs：2.5Ohm @ 300mA, 10V
- Vgs(th) (Max) @ Id：2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：0.9 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：15 pF @ 25 V
- FET Feature：-
- Power Dissipation (Max)：330mW (Tj)
- Operating Temperature：-55°C ~ 150°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount

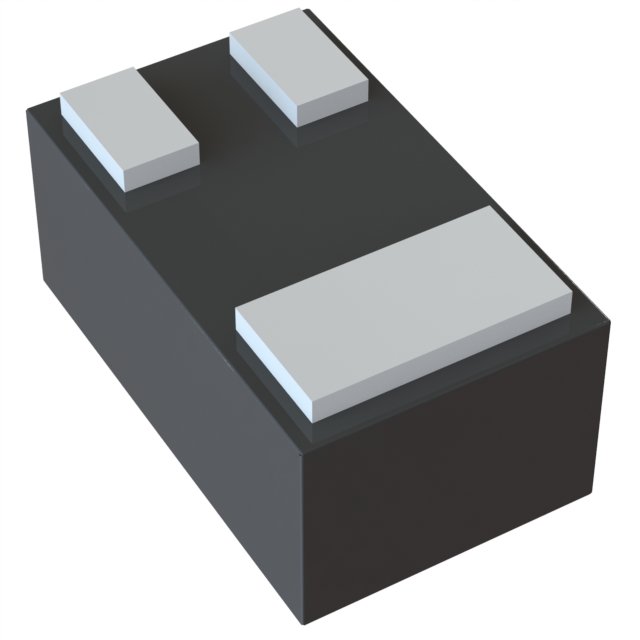

- Supplier Device Package：DFN1006-3
- Package / Case：SC-101, SOT-883
Download product information
Overview
The 2N7002KL3A-TPQ3 is an N-channel Power MOSFET manufactured by Micro Commercial Components. It features a 60 V drain-source voltage rating and supports a continuous drain current of 260 mA. The device exhibits a maximum on-resistance of 2.5 ohms. It is designed for surface mount applications using the DFN1006 package.
Feature Summary
- N-channel enhancement mode operation
- Surface mount construction in DFN1006 package
- Silicon technology implementation
Applications
- General purpose switching circuits
- Low power load management
- Battery protection systems
Procurement Notes
Verify the specific suffix Q3 against official Micro Commercial Components documentation to confirm any automotive or reliability qualifications associated with this variant. Ensure the DFN1006 footprint matches the target PCB design. Cross-reference the manufacturer part number with authorized distributor listings to confirm current availability and authenticity before procurement.
Selection Notes
Select this component when a compact N-channel MOSFET with 60 V blocking capability is required. The 260 mA current rating suits low-power applications. The DFN1006 package offers a small form factor for space-constrained designs. Verify thermal requirements and on-resistance characteristics against the specific datasheet for the Q3 suffix variant.
Part Context
This part belongs to the 2N7002 series of N-channel MOSFETs from Micro Commercial Components. The series includes various packages such as SOT-23 and DFN. The KL3A designation indicates the specific DFN1006 body style, while the TP suffix typically denotes tape and reel packaging. The Q3 suffix may indicate specific qualification standards.
Replacement Considerations
Compatible replacements include other 2N7002 variants in DFN1006 packages from MCC, such as the 2N7002KL3A-TP. Other manufacturers offering equivalent 60 V, 260 mA N-channel MOSFETs in DFN1006 packages may also serve as substitutes if electrical parameters align.
