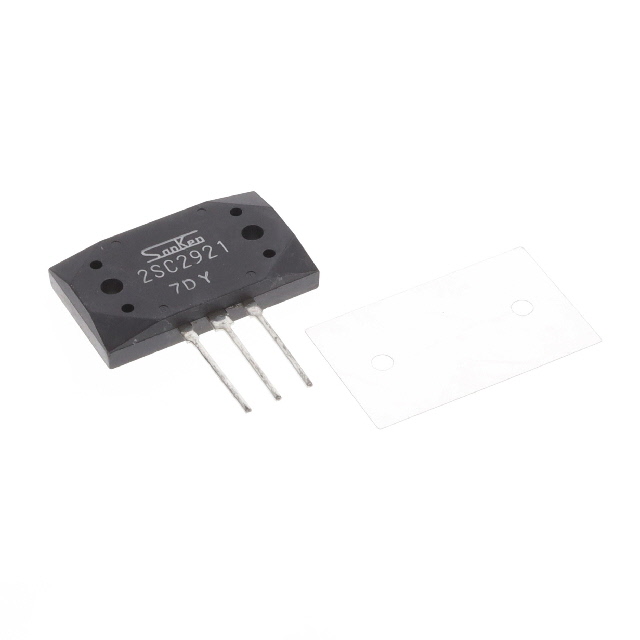

2SC2921

Description：TRANS NPN 160V 15A MT-200
Series：-

SKU:a1134e98d60d Category: Single Bipolar Transistors Brand: Sanken Electric USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2SC2921 is listed in the Single Bipolar Transistors range at ChipApex. The manufacturer field lists Sanken Electric USA Inc.. Its product description is TRANS NPN 160V 15A MT-200. Review the specifications below when checking this part for your BOM.

Single Bipolar Transistors specifications for 2SC2921

Description：TRANS NPN 160V 15A MT-200
Series：-
Mfr：Sanken Electric USA Inc.
Package：Bulk
Transistor Type：NPN
Current - Collector (Ic) (Max)：15 A
Voltage - Collector Emitter Breakdown (Max)：160 V
Vce Saturation (Max) @ Ib, Ic：2V @ 500mA, 5A
Current - Collector Cutoff (Max)：100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce：50 @ 5A, 4V
Power - Max：150 W
Frequency - Transition：60MHz
Operating Temperature：150°C (TJ)
Mounting Type：Through Hole
Package / Case：3-ESIP
Supplier Device Package：MT-200
Grade：-
Qualification：-

Single Bipolar Transistors datasheet and documents for 2SC2921

2SC2921

Single Bipolar Transistors Overview

The Sanken Electric USA Inc. 2SC2921 is a silicon NPN epitaxial planar power bipolar transistor designed for audio and general-purpose applications. It features a maximum collector-emitter voltage (VCEO) of 160 V, a continuous collector current (IC) rating of 15 A, and a maximum power dissipation (PC) of 150 W at a case temperature of 25°C. The device exhibits a minimum DC current gain (hFE) of 50 at IC=5A and VCE=4V, with a typical transition frequency (fT) of 60 MHz. It utilizes the MT-200 through-hole package and serves as the complementary counterpart to the 2SA1215 PNP transistor.

Single Bipolar Transistors Feature Summary

Complementary NPN-PNP pair configuration with the 2SA1215
High collector voltage capability rated at 160 V minimum
Wide safe operating area suitable for linear applications
RoHS compliant construction

Single Bipolar Transistors Applications

High fidelity audio amplifiers
General purpose linear circuits

Single Bipolar Transistors Procurement Notes

Verify component authenticity against official Sanken Electric datasheets due to end-of-life status. Confirm package integrity for the MT-200 flange mount style. Check for specific hFE ranking suffixes if precise gain ranges are required for circuit design. Ensure compliance with RoHS standards for environmental regulations.

Single Bipolar Transistors Selection Notes

Select this component for high-voltage linear applications requiring robust thermal performance. Consider the complementary 2SA1215 for balanced push-pull configurations. Evaluate thermal management requirements carefully, as power dissipation drops significantly without an adequate heatsink. Verify that the 160 V breakdown voltage meets the circuit's peak voltage demands.

Single Bipolar Transistors Part Context

The 2SC2921 belongs to the family of power bipolar transistors manufactured by Sanken Electric USA Inc. It is specifically engineered as the NPN complement to the 2SA1215 PNP transistor. This pairing facilitates the creation of symmetrical output stages in amplifier designs. The device is housed in the MT-200 package, which provides a large thermal interface for efficient heat dissipation during operation.
