2SC3506

Single Bipolar Transistors Overview

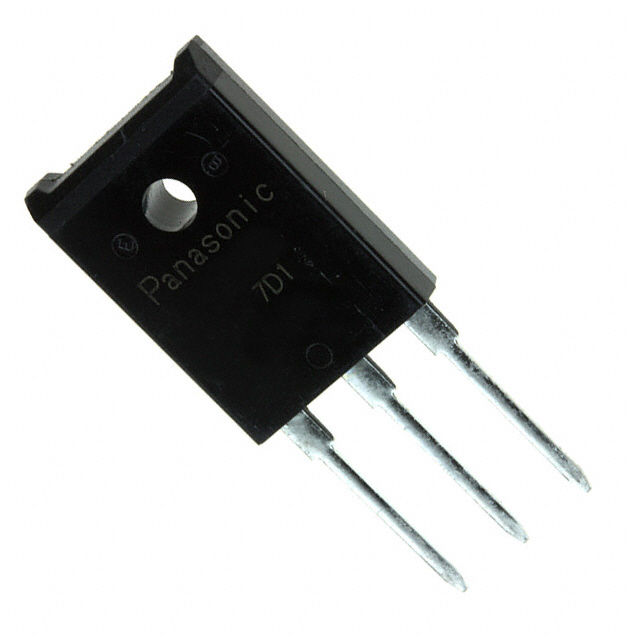

The Panasonic 2SC3506 is a silicon NPN triple diffusion planar power transistor designed for high-speed switching applications. It features a TOP-3F-A1 (EIAJ SC-92) full-pack package that allows direct heat sink mounting with a single screw. The device supports a collector current of 3A and a collector-emitter voltage of 800V, with a peak collector current rating of 6A. Key electrical characteristics include a collector-base cutoff current of 5µA at 1000V and a forward current transfer ratio minimum of 6 at 2A. Switching performance includes a turn-on time of 1µs, storage time of 2.5µs, and fall time of 0.5µs.

Single Bipolar Transistors Feature Summary

• High-speed switching capability optimized for rapid transition times
• High collector-base breakdown voltage providing robust isolation
• Full-pack package design enabling efficient thermal management via single-screw heat sink installation

Single Bipolar Transistors Applications

• General electronic equipment
• Office equipment
• Communications equipment
• Measuring instruments

Single Bipolar Transistors Procurement Notes

Verify the specific lifecycle status before procurement, as this component may be classified under maintenance or discontinued stages. Confirm compliance with RoHS Directive requirements for your region. Ensure the sourcing channel provides valid documentation to verify authenticity and traceability against official Panasonic specifications.

Single Bipolar Transistors Selection Notes

Select this component when high-speed switching and high voltage handling are required in a standard industrial form factor. The low saturation voltage aids efficiency at moderate currents. Verify that the application does not require automotive or aerospace-grade reliability, as these specialized sectors are explicitly excluded from the intended use scope.

Single Bipolar Transistors Part Context

This part belongs to the Panasonic 2SC series of silicon NPN transistors. It utilizes a triple diffusion planar process technology. The device is housed in a plastic epoxy encapsulation with an isolated flange mount configuration, distinguishing it from smaller signal transistor packages.

Single Bipolar Transistors Replacement Considerations

Consult official Panasonic resources for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' devices without validating pinout and electrical parameters.
