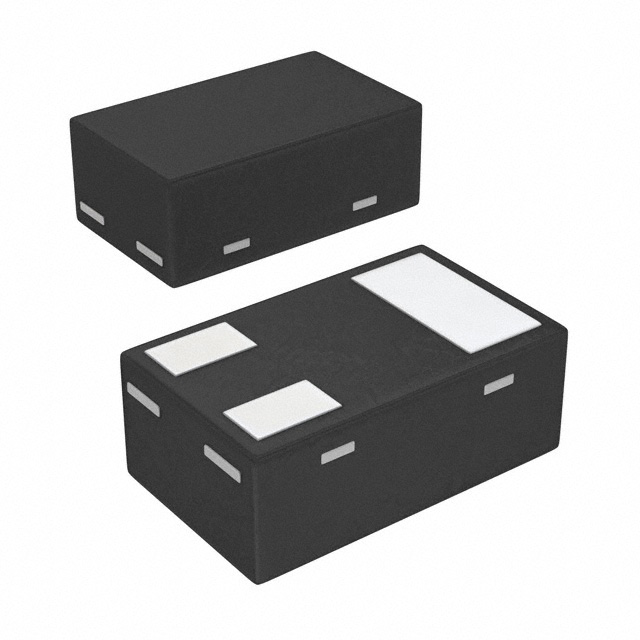

2SC6026CT-GR,L3F

$0.23

Description：TRANS NPN 50V 0.1A CST3
Series：-

SKU:411b9b74daab Category: Single Bipolar Transistors Brand: Toshiba Semiconductor and Storage

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2SC6026CT-GR,L3F is listed in the Single Bipolar Transistors range at ChipApex. The manufacturer field lists Toshiba Semiconductor and Storage. Its product description is TRANS NPN 50V 0.1A CST3. Review the specifications below when checking this part for your BOM.

Single Bipolar Transistors specifications for 2SC6026CT-GR,L3F

Description：TRANS NPN 50V 0.1A CST3
Series：-
Mfr：Toshiba Semiconductor and Storage
Package：Tape & Reel (TR),Cut Tape (CT)
Transistor Type：NPN
Current - Collector (Ic) (Max)：100 mA
Voltage - Collector Emitter Breakdown (Max)：50 V
Vce Saturation (Max) @ Ib, Ic：250mV @ 10mA, 100mA
Current - Collector Cutoff (Max)：100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce：200 @ 2mA, 6V
Power - Max：100 mW
Frequency - Transition：60MHz
Operating Temperature：150°C (TJ)
Mounting Type：Surface Mount
Package / Case：SC-101, SOT-883
Supplier Device Package：CST3
Grade：-
Qualification：-
