2SC6043-AE

Single Bipolar Transistors Overview

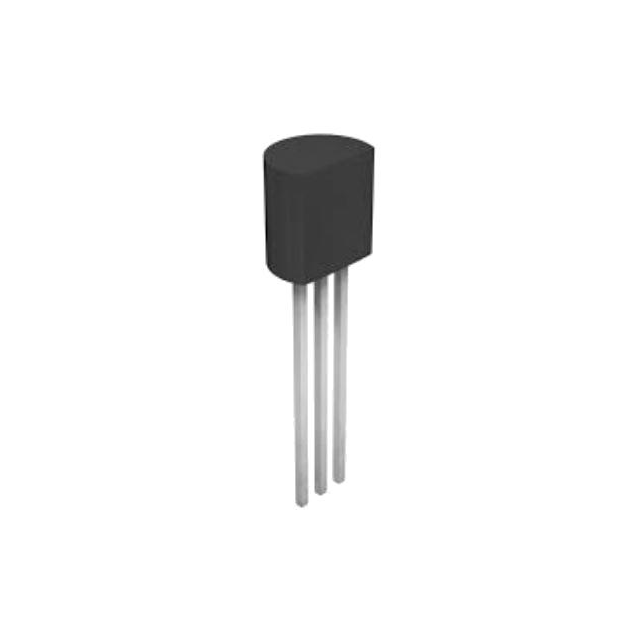

The onsemi 2SC6043-AE is an NPN single bipolar junction transistor designed for general-purpose switching and amplification applications. It features a collector-emitter voltage rating of 50 V and a continuous collector current capacity of 2 A. The device exhibits a transition frequency of 420 MHz, supporting high-speed operation. Power dissipation is rated at 1 W under specified conditions. Key electrical characteristics include a maximum emitter-base voltage of 6 V and a low collector-emitter saturation voltage of 150 mV. The component is housed in a TO-92 (TO-226) through-hole package with formed leads.

Single Bipolar Transistors Feature Summary

• NPN configuration suitable for standard switching and linear amplification circuits
• High-frequency performance with a 420 MHz transition frequency
• Robust current handling capability up to 2 A collector current
• Low saturation voltage for efficient power management

Single Bipolar Transistors Applications

• General-purpose signal amplification
• Electronic switching circuits
• Driver stages for loads requiring moderate current

Single Bipolar Transistors Procurement Notes

Verify the manufacturer part number against official onsemi documentation to ensure authenticity. Confirm that the package type matches the required TO-92 form factor. Check datasheet specifications for thermal resistance and operating temperature ranges relevant to the specific application environment. Ensure compliance with RoHS directives if required by the project standards.

Single Bipolar Transistors Selection Notes

Select this component when an NPN transistor with 50 V breakdown and 2 A current capacity is needed. The 420 MHz frequency response makes it suitable for applications requiring faster switching than standard low-frequency transistors. Consider the TO-92 package constraints for board space and thermal dissipation requirements compared to higher-power packages.

Single Bipolar Transistors Part Context

This component belongs to the category of single bipolar transistors manufactured by onsemi. It serves as a discrete semiconductor device within the broader family of NPN junction transistors. The part is distinct from power transistors or integrated circuits, focusing on individual element performance for circuit design flexibility.

Single Bipolar Transistors Replacement Considerations

Consult official cross-reference lists for verified substitutes. Generic replacements may differ in gain bandwidth or saturation voltage. Verify pinout compatibility before substitution.
