Edgeboard Connectors Overview

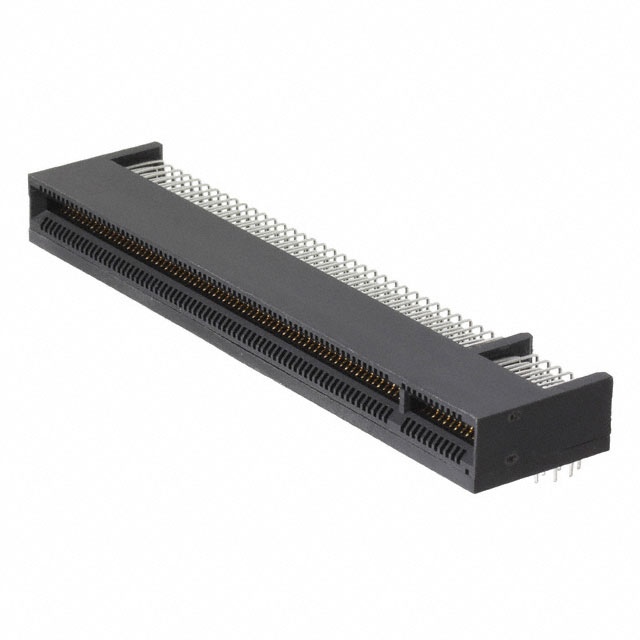

The TE Connectivity AMP Connectors part number 3-1761465-4 is a PCI Express female card edge connector designed for surface mount or through-hole applications. It features a dual-row configuration with 164 positions and a 0.039-inch (1.00mm) centerline pitch. The contacts are gold-plated to ensure reliable signal transmission in high-speed data environments.

Edgeboard Connectors Feature Summary

• Dual-row architecture supporting high-density interconnect requirements
• Gold contact finish for enhanced conductivity and corrosion resistance
• Compatible with standard PCI Express form factors

Edgeboard Connectors Applications

• PCI Express peripheral cards
• High-speed data transfer modules
• Computer hardware expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific termination style required for your PCB layout, as this component may be available in both surface mount and through-hole variants depending on the exact suffix. Confirm that the 164-position count aligns with your design constraints before ordering.

Edgeboard Connectors Selection Notes

Select this connector when a 1.00mm pitch is necessary for PCI Express compliance. Ensure the mating card thickness matches the connector's retention specifications. Verify that the gold plating meets the environmental conditions of the intended deployment.

Edgeboard Connectors Part Context

This component belongs to the TE Connectivity AMP series of card edge connectors. It is engineered for robust mechanical stability and electrical performance in computing infrastructure. The 164-position format supports comprehensive signal routing for advanced peripheral interfaces.

Edgeboard Connectors Replacement Considerations

No direct substitute part numbers are confirmed in the provided documentation. If unavailable, consult TE Connectivity for current equivalents within the same pitch and position family.
