305-014-500-207

Edgeboard Connectors Overview

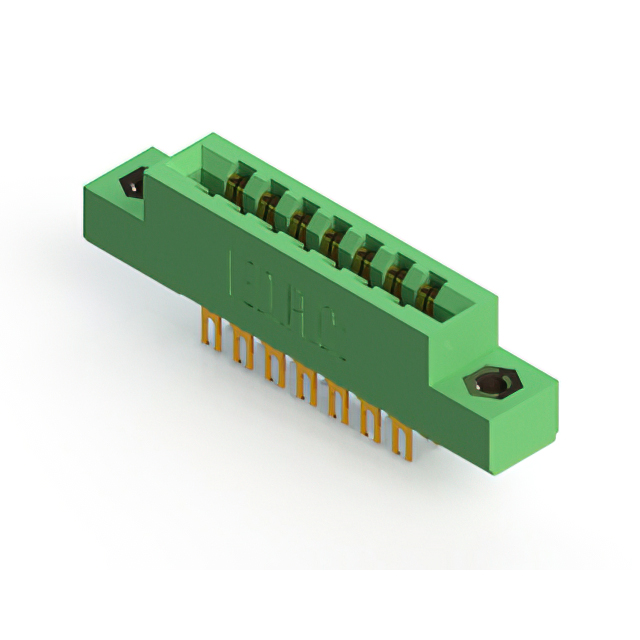

The EDAC Inc. 305-014-500-207 is a standard card edge connector from the 305 series, designed for vertical panel mounting. It features 14 positions arranged in a dual row configuration with a 3.96 mm (0.156 inch) pitch. The connector utilizes female contacts made of copper alloy with gold plating and employs a solder lug termination type. It is rated for 5 A current and operates within a temperature range of -40°C to +105°C. The housing is constructed from green thermoplastic material, supporting PCB thicknesses between 1.37 mm and 1.78 mm.

Edgeboard Connectors Feature Summary

• Vertical panel mount design with solder lug termination for secure board attachment
• Dual-edge female contact interface with gold-plated copper alloy terminals
• Thermoplastic insulator housing providing high insulation resistance

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure compatibility with required PCB thickness and flange specifications. Confirm RoHS compliance status and environmental certifications prior to procurement. Cross-reference the part number with authorized distributors to validate authenticity and supply chain integrity.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge connector with a 3.96 mm pitch is required for vertical panel applications. Ensure the target printed circuit board thickness falls within the specified 1.37 mm to 1.78 mm range. Verify that the 5 A current rating and operating temperature limits meet the system's electrical and thermal requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic interconnection needs. The 305 series is characterized by its robust construction and reliable performance in demanding industrial environments.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with differing position counts or termination styles. Verify mechanical dimensions and electrical ratings before adopting alternative part numbers.
