305-016-521-204

Edgeboard Connectors Overview

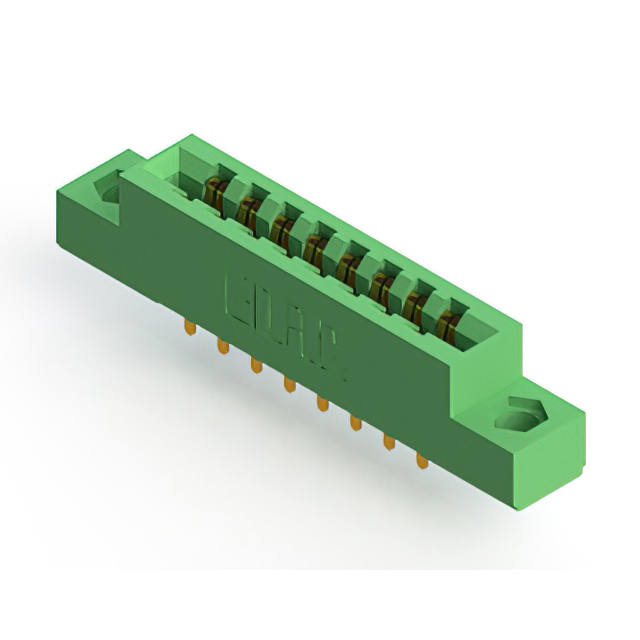

The EDAC Inc. 305-016-521-204 is a dual female card edge connector designed for vertical panel mount applications. It features 16 positions arranged in two rows with a 0.156-inch (3.96 mm) pitch. The contacts are constructed from copper alloy with gold plating and utilize a P.C. tail termination method. The housing is made of thermoplastic polyester, providing durability for industrial environments. This component supports board thicknesses up to 1.57 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual female configuration with 16 contact positions for reliable signal transmission
• Vertical panel mount design facilitates secure integration into chassis systems
• Gold-plated copper alloy contacts ensure low resistance and corrosion resistance
• Thermoplastic polyester insulation provides structural stability and thermal endurance

Edgeboard Connectors Applications

• Industrial control system interconnects
• Panel-mounted electronic modules
• High-density data or power routing applications

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's ordering guide to confirm exact termination style and material specifications. Ensure compatibility with target PCB thickness and mounting constraints before procurement. Cross-reference the part number with official distributor catalogs to confirm current availability status and lead times.

Edgeboard Connectors Selection Notes

Select this model when a vertical panel mount solution is required for dual-row interfaces. The 0.156-inch pitch accommodates standard board widths while maintaining high contact density. Consider the operating temperature range and environmental ratings to ensure suitability for the intended deployment conditions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options to support diverse connectivity requirements. The 305-016 variant specifically addresses needs for moderate pin counts in robust industrial settings.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with identical mechanical dimensions and electrical characteristics. Verify that alternative parts maintain the same dual female configuration and vertical mounting orientation.
