Edgeboard Connectors Overview

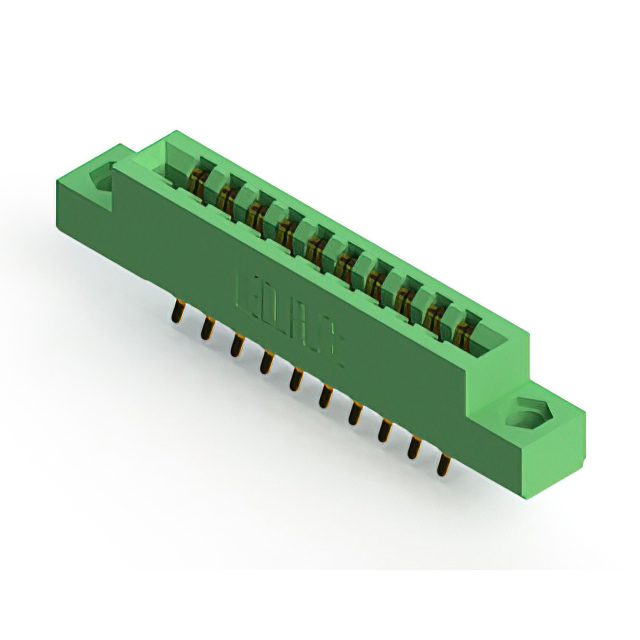

The EDAC 305-020-556-504 is a standard card edge connector from the 305 Series, designed for dual-edge female mating applications. It features a 20-position configuration with a 3.96 mm (0.156 inch) pitch across two rows. The unit utilizes gold-plated copper alloy contacts and a green thermoplastic polyester housing. Rated for 5 A continuous current and 1800 VACrms insulation, it supports PCB thicknesses between 1.37 mm and 1.78 mm. Operating temperatures range from -40°C to +105°C, with an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Accepts both between-contact and in-contact polarizing keys for secure alignment
• Dual-row female contact configuration for dual-edge card mating
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic polyester housing provides structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Automotive electronic modules
• Communication equipment backplanes
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Confirm RoHS compliance status through the manufacturer's latest environmental declarations. Ensure the ordering quantity aligns with the manufacturer's standard packaging requirements. Cross-reference the part number with authorized distributors to validate authenticity and supply chain integrity before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 3.96 mm pitch is required. Ensure the target PCB thickness falls within the 1.37 mm to 1.78 mm operational range. Verify that the application environment remains within the -40°C to +105°C temperature limits. Confirm compatibility with polarizing key requirements if mechanical locking is necessary for the assembly design.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 Series, which offers various mounting options and row configurations. The series is characterized by its standardized 3.96 mm pitch and durable construction suitable for demanding environments. Similar models in the series vary primarily in position count and specific mounting styles while maintaining consistent electrical ratings and contact materials.
