305-022-500-201

Edgeboard Connectors Overview

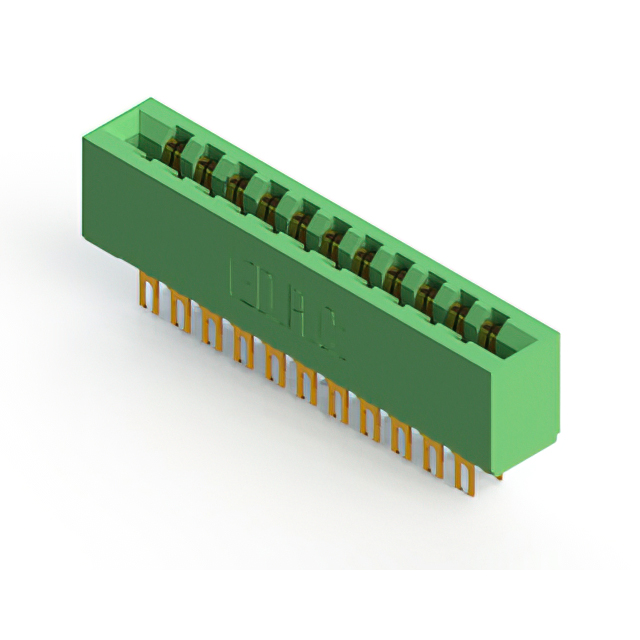

The EDAC Inc. 305-022-500-201 is a standard card edge connector receptacle featuring 22 positions with a 3.96 mm pitch. It supports a 1.57 mm board thickness and utilizes gold-plated copper alloy contacts rated for 5 A current. The component employs a panel mount style with a straight orientation and solder termination.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure edgeboard mating
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides structural stability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness, material grade, and mechanical tolerances. Ensure compatibility with target PCB stack-up dimensions before procurement.

Edgeboard Connectors Selection Notes

Select this component when a 22-position dual-row interface is required. Confirm that the 3.96 mm pitch aligns with the mating card edge design. Validate that the 5 A current rating meets the application's electrical load requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting options. This specific model provides a fixed 22-position configuration for standardized industrial applications.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series variants for different position counts. Verify mechanical fit and electrical ratings before substituting with generic equivalents.
