305-062-520-208

Edgeboard Connectors Overview

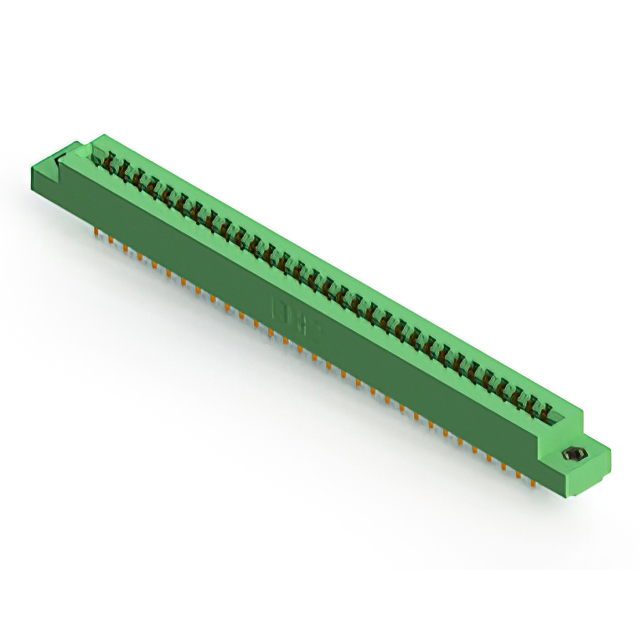

The EDAC Inc. 305-062-520-208 is a standard dual-row card edge connector designed for vertical panel mounting. It features 62 positions with a 3.96 mm (0.156 inch) pitch, accommodating a board thickness of 1.57 mm. The contacts are gold-plated copper alloy, rated for 5 A current, and utilize solder lug termination. Constructed with a thermoplastic housing, it operates within -40°C to +105°C and maintains an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row configuration providing 62 contact positions for high-density signal routing
• Vertical panel mount design with solder lug termination for secure mechanical attachment
• Gold-plated copper alloy contacts ensuring reliable conductivity and corrosion resistance

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted interconnects
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement instrumentation needing durable signal connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer's official documentation to confirm exact termination style and plating specifications. Ensure compatibility with the target PCB edge thickness and panel cutout dimensions before procurement. Confirm RoHS compliance status through the latest datasheet revision.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel-mount solution with dual-row connectivity is required. The 3.96 mm pitch suits applications needing wider spacing between signals. Verify that the 5 A current rating meets the circuit requirements and that the solder lug termination aligns with the assembly process.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles, all sharing a consistent 3.96 mm pitch. The 305-062-520-208 specifically addresses needs for 62-position dual-row connections in panel-mounted configurations.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series variants for different position counts or mounting angles. Verify pin-to-pin compatibility if substituting with similar connectors from other manufacturers, ensuring identical pitch, board thickness tolerance, and termination type.
