305-062-556-578

Edgeboard Connectors Overview

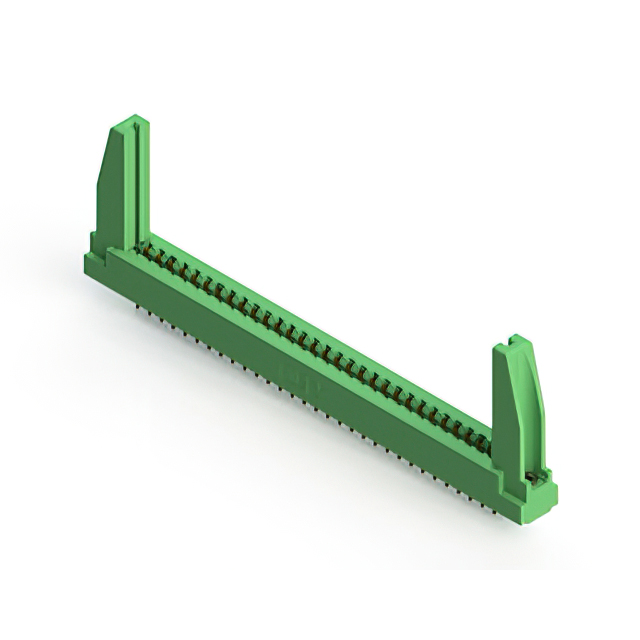

The EDAC Inc. 305-062-556-578 is a standard card edge connector from the 305 series, designed for panel mounting applications. It features 62 positions with a 3.96 mm pitch and supports dual-edge card configurations. The connector utilizes gold-plated copper alloy contacts and solder pin termination for secure electrical connections. It accommodates board thicknesses ranging from 1.37 mm to 1.78 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for robust signal transmission
• Gold-plated copper alloy contacts ensure reliable conductivity
• Panel mount vertical installation style with solder pin termination

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment backplanes
• Embedded computing modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and housing material variations. Ensure compatibility with the target PCB stack-up and mating card dimensions before procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability and lead times.

Edgeboard Connectors Selection Notes

Select this component when a 62-position interface with a 3.96 mm pitch is required for panel-mounted assemblies. Consider the dual-edge design if both sides of the circuit board require connection points. Verify that the operating environment falls within the specified temperature range and that the housing material meets chemical resistance requirements.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which offers various position counts and mounting options. Similar models in the series include the 305-048-556-578 and 305-050-520-578, differing primarily in position count and specific housing characteristics. The series provides standardized interfaces for industrial and commercial electronic applications.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include the 305-062-556-558 and 305-062-556-578 variants with different housing colors or flange options. Verify mechanical fit and electrical specifications before substituting with connectors from other manufacturers.
