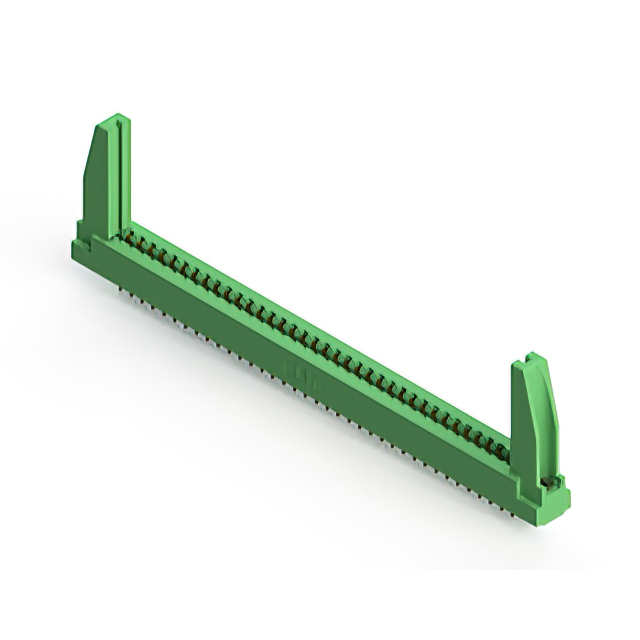

305-074-556-578

305-074-556-578 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 74POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-074-556-578

• Description：CONN EDGE DUAL FMALE 74POS 0.156
• Series：305
• Mfr：EDAC Inc.
• Package：Box
• Card Type：Non Specified - Dual Edge
• Gender：Female
• Number of Positions/Bay/Row：37
• Number of Positions：74
• Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
• Number of Rows：2
• Pitch：0.156" (3.96mm)
• Read Out：Dual
• Features：Card Extender, Card Guides
• Mounting Type：Board Edge, Straddle Mount
• Termination：Solder
• Contact Material：Copper Alloy
• Contact Finish：Gold
• Contact Finish Thickness：10.0µin (0.25µm)
• Contact Type：Semi Bellows
• Color：Green
• Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
• Operating Temperature：-40°C ~ 105°C
