392-018-521-112

Edgeboard Connectors Overview

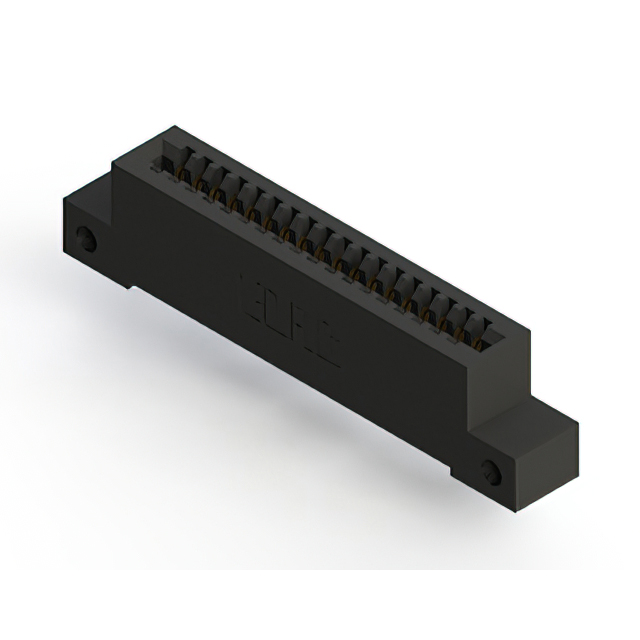

The EDAC Inc. 392-018-521-112 is a standard card edge connector from the 392 series, designed for through-hole mounting. It features 18 positions arranged in a single row with a 0.1 inch (2.54 mm) pitch. The connector utilizes female copper alloy contacts with a gold finish thickness of 10.0µin (0.25µm). It supports wire wrap termination and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single-row configuration with 18 positions for compact circuit board integration
• Female contact design with gold plating for reliable signal transmission
• Wire wrap termination method ensures secure electrical connections
• Thermoplastic polyester insulator provides durability across wide temperature ranges

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics applications
• Communication equipment interfaces
• Power supply module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required termination types and mounting styles. Confirm that the single-row configuration matches the PCB layout requirements. Check RoHS compliance status if environmental regulations apply to the assembly process. Ensure the wire wrap termination capability aligns with the manufacturing workflow.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 0.1 inch spacing is required. The wire wrap termination suits prototyping or low-volume production environments. Consider the operating temperature range for harsh industrial settings. Verify that the 18-position count meets the signal routing needs without excessive board space usage.

Edgeboard Connectors Part Context

This part belongs to the EDAC 392 series of standard card edge connectors. The series offers various configurations including different row counts and termination options. The 392 series is widely used in general-purpose electronic assemblies where reliable connectivity is essential. This specific model represents a single-row variant optimized for space-constrained designs.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 392 series parts for alternative row counts or termination methods. Verify dimensional compatibility before substituting with generic equivalents. Ensure the replacement maintains the same pitch and contact material specifications.
