395-006-523-607

Edgeboard Connectors Overview

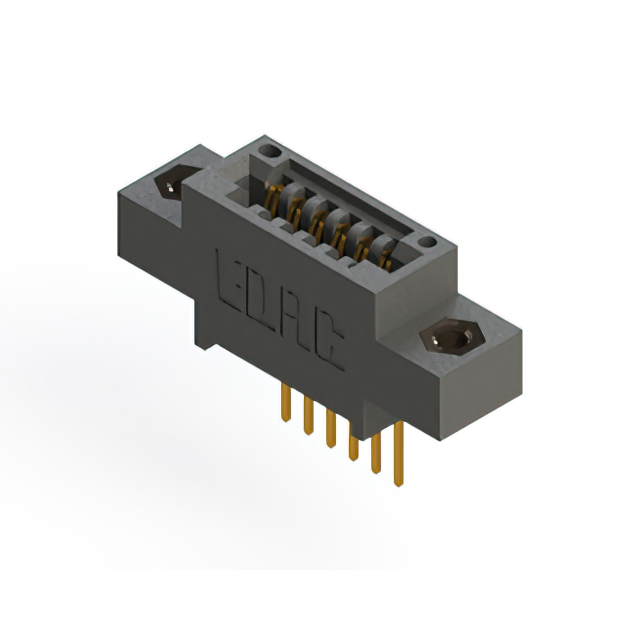

The EDAC Inc. 395-006-523-607 is a single-row card edge connector designed for vertical through-hole mounting. It features 6 positions with a 0.100 inch (2.54mm) pitch and accepts board thicknesses between 0.054 and 0.070 inches. The contacts are female, made of copper alloy with 10.0µin gold plating, utilizing a cantilever design. The housing is black thermoplastic polyester, rated for -40°C to 105°C, and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration with cantilever spring design
• Vertical through-hole termination for secure PCB integration
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Thermoplastic polyester insulation supporting high-temperature operation

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronics module connections
• Automotive electronic circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and flange characteristics. Ensure the target application requires the standard 0.100-inch pitch and compatible board thickness range. Confirm RoHS3 compliance requirements match the component specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a low-profile, single-row connection is required for thin circuit boards within the specified thickness tolerance. The vertical orientation suits space-constrained designs where horizontal connectors are unsuitable. Consider the cantileter contact type for ease of insertion and removal during assembly or maintenance procedures.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination options for general-purpose electronic applications. The 395-006 variant specifically addresses needs for minimal pin count configurations in compact electronic assemblies requiring robust mechanical stability.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 395 series parts with identical 6-position layouts and matching pitch dimensions. Verify that alternative models support the same vertical mounting angle and through-hole termination method to ensure mechanical compatibility.
