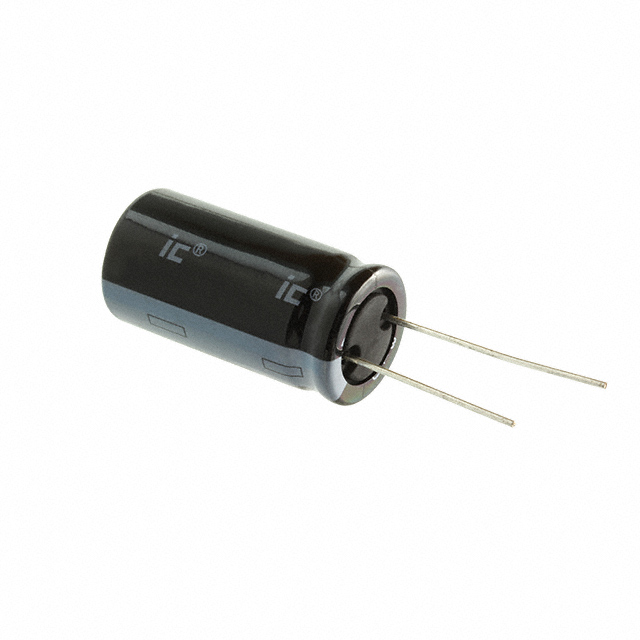

478CKS035M

478CKS035M is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Cornell Dubilier Knowles. Its product description is CAP ALUM 4700UF 20% 35V RADIAL. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for 478CKS035M

• Description：CAP ALUM 4700UF 20% 35V RADIAL
• Series：CKS
• Mfr：Cornell Dubilier Knowles
• Package：Bulk
• Capacitance：4700 µF
• Tolerance：±20%
• Voltage - Rated：35 V
• ESR (Equivalent Series Resistance)：71mOhm @ 120Hz
• Lifetime @ Temp.：2000 Hrs @ 85°C
• Operating Temperature：-40°C ~ 85°C
• Polarization：Polar
• Ratings：-
• Applications：Bypass, Decoupling
• Ripple Current @ Low Frequency：3.4 A @ 120 Hz
• Ripple Current @ High Frequency：4.76 A @ 100 kHz
• Lead Spacing：0.295" (7.50mm)
• Size / Dimension：0.709" Dia (18.00mm)
• Height - Seated (Max)：1.437" (36.50mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for 478CKS035M
