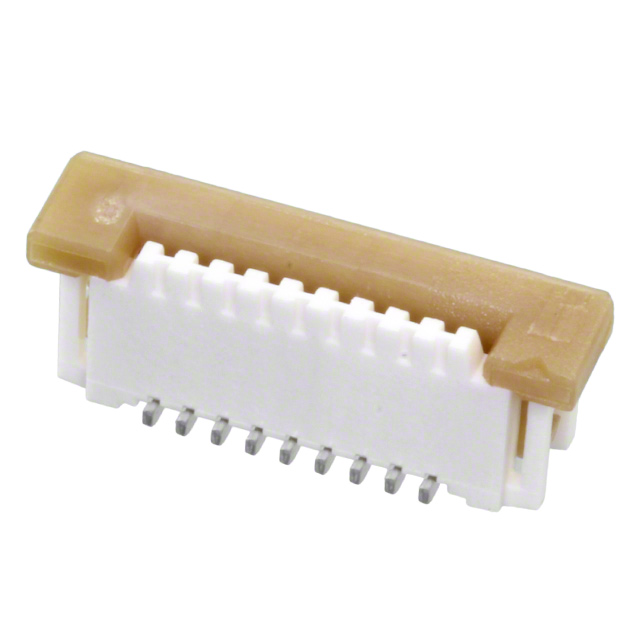

FFC, FPC (Flat Flexible) Connector Assemblies 526100933 product image

526100933

$1.49

Description：CONN FPC VERT 9POS 1MM SMD
Series：Easy-On 52610
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:132fac6899b5 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

526100933 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FPC VERT 9POS 1MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 526100933

Description：CONN FPC VERT 9POS 1MM SMD
Series：Easy-On 52610
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FPC
Mounting Type：Surface Mount
Connector/Contact Type：Contacts, Vertical - 1 Sided
Number of Positions：9
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.226" (5.74mm)
Locking Feature：Slide Lock
Cable End Type：Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin Bismuth
Housing Material：Polyamide (PA), Nylon, Glass Filled
Actuator Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Zero Insertion Force (ZIF)
Voltage Rating：125V
Operating Temperature：-40°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 526100933

526100933
