526101671

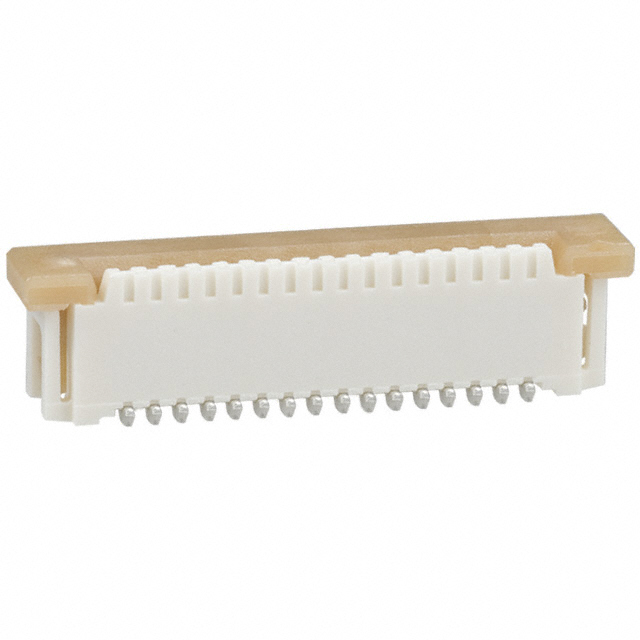

526101671 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN VERT 16POS 1MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 526101671

• Description：CONN VERT 16POS 1MM SMD
• Series：Easy-On 52610
• Mfr：Molex
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：-
• Mounting Type：Surface Mount
• Connector/Contact Type：Contacts, Vertical - 1 Sided
• Number of Positions：16
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.226" (5.74mm)
• Locking Feature：Slide Lock
• Cable End Type：Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Tin Bismuth
• Housing Material：Polyamide (PA46), Nylon 4/6
• Actuator Material：Polyphenylene Sulfide (PPS)
• Features：Zero Insertion Force (ZIF)
• Voltage Rating：125V
• Operating Temperature：-40°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 526101671
