An inertial measurement unit (IMU) measures motion using an accelerometer and a gyroscope in one device or module. The accelerometer senses specific force, including the effect of gravity; the gyroscope senses angular rate. Software can combine their readings to estimate movement and orientation, but the estimate needs calibration and has limits.

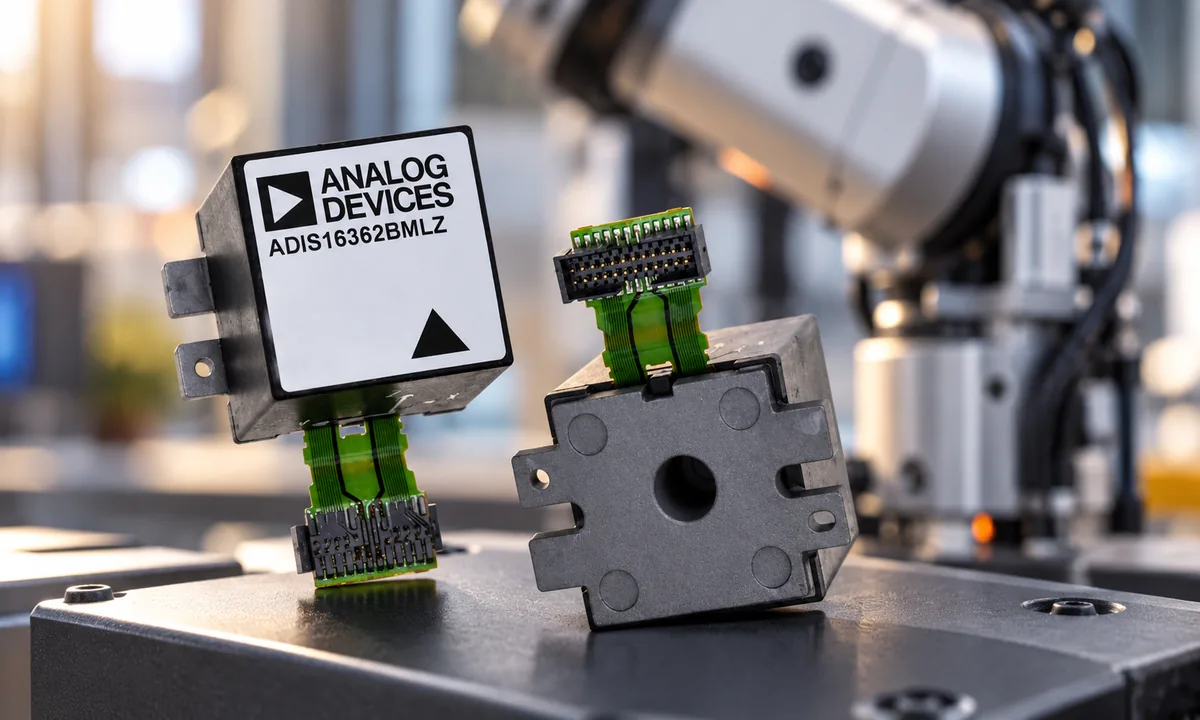

IMU product image against an illustrative robot application scene
What does an IMU measure?

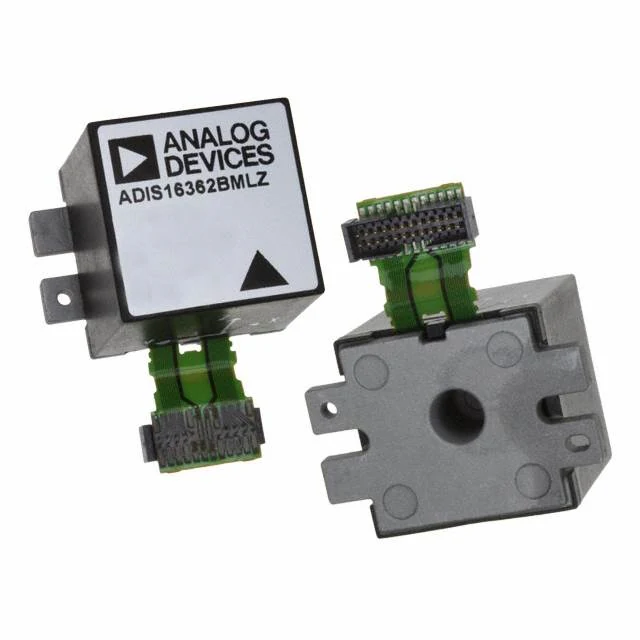

IMU product image from ChipApex category page
A common six-axis IMU provides acceleration along three axes and rotation rate about three axes. Some products add a magnetometer for a nine-axis system, but the label alone does not tell you what the device actually integrates. Check the block diagram and output registers for the exact part in the ChipApex inertial measurement units category.
An IMU mounted on a robot arm, for example, can report how the assembly accelerates and rotates. Its output is not a direct position measurement. Position estimated by integrating acceleration can drift quickly unless other references correct it.
Why combine an accelerometer and a gyroscope?
The gyroscope follows quick rotational changes, but integrating its rate creates angle drift over time. The accelerometers reading can help infer tilt relative to gravity when other acceleration is limited, but it becomes ambiguous during strong motion. Sensor-fusion software weighs those signals according to the application. Even a well-designed six-axis estimate cannot establish true north without another reference.
What do “six-axis” and “nine-axis” mean?
Six-axis usually refers to three acceleration and three angular-rate channels. Nine-axis generally adds three magnetic-field channels. These are channel counts, not a guarantee of tracking accuracy. Performance depends on sensor noise, bias stability, calibration, sample rate, mounting, magnetic conditions, and the fusion algorithm.

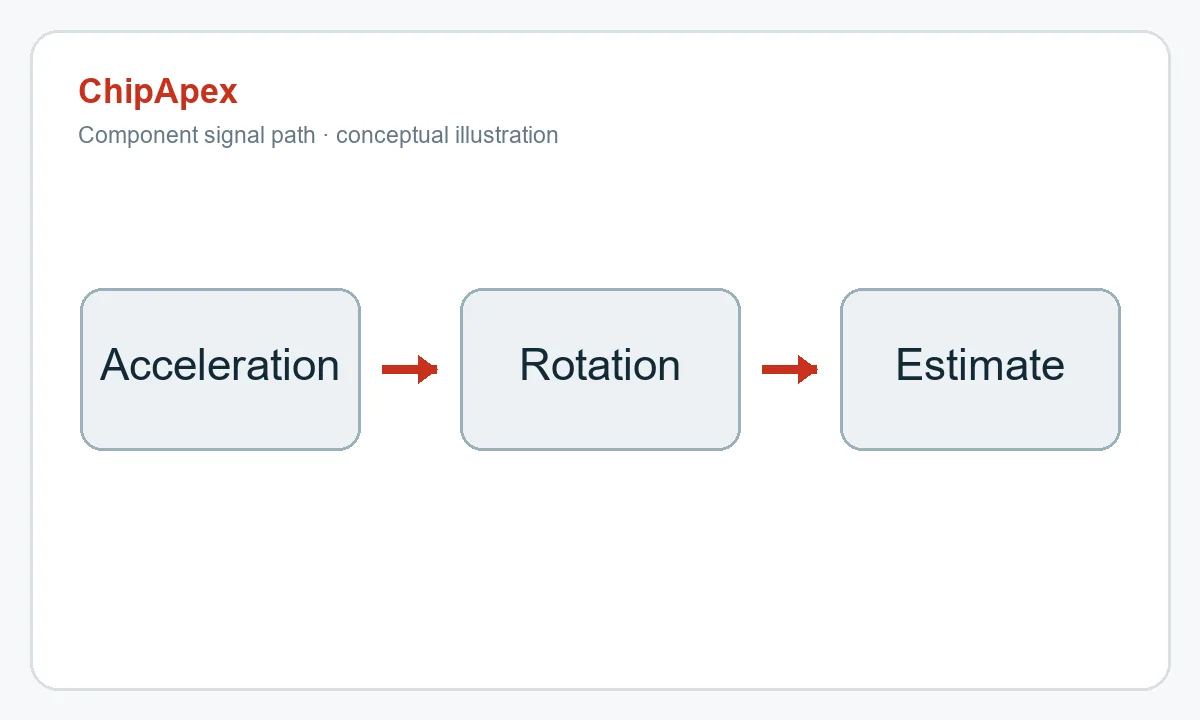

How do you choose an IMU?Conceptual path from acceleration and rotation to orientation estimate
Set the expected acceleration and angular-rate ranges first. Then compare noise, offset or bias, output data rate, power consumption, digital interface, package, temperature limits, and mounting orientation. Verify how firmware handles calibration and timestamps. For sourcing, share the intended motion range, interface, environment, and part number with ChipApex.
FAQ
Can an IMU measure absolute position?
No ordinary IMU directly measures absolute position. Integrating motion readings accumulates error, so location estimates need other references.
Is a gyroscope the same as an IMU?
No. A gyroscope senses angular rate. An IMU usually combines it with an accelerometer and may integrate more sensors.
Does a six-axis IMU measure heading?
It can track relative rotation, but yaw drifts without an external heading reference such as a magnetometer or another system cue.
Why calibrate after assembly?
Board mounting and housing stresses can change offsets and alignment. Calibration in the final mechanical assembly can reduce those errors.
Which interface should I choose?
Select a bus supported by the host controller and required data rate, then verify voltage levels, interrupt behavior, and driver support in the datasheet.
Discover what DRAM is, how it works, its types, and why choosing authentic, RoHS-compliant DRAM chips matters. Source reliable DRAM from ChipApex—global supplier with full traceability.

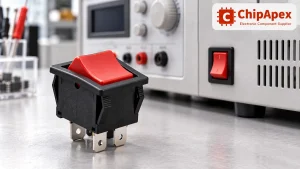

Choose a rocker switch by AC/DC ratings, contact arrangement, illumination, panel fit and sealing. Get practical checks for engineering and component sourcing.
