68692-134HLF

Headers, Male Pins Overview

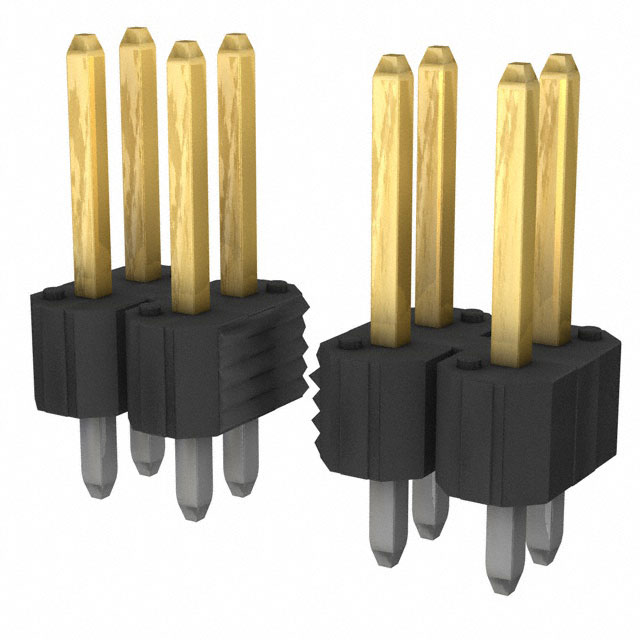

The Amphenol ICC (FCI) 68692-134HLF is a BergStik unshrouded vertical header designed for board-to-board applications. It features a double row configuration with 34 positions and a 2.54 mm pitch. The connector utilizes through-hole solder termination with tin-plated phosphor bronze contacts rated for 3 A current. Constructed with black thermoplastic insulation, it operates within a temperature range of -65°C to +125°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Unshrouded vertical design for direct board-to-board interconnection
• Through-hole solder termination for secure PCB mounting
• Tin-plated phosphor bronze contacts ensuring reliable conductivity

Headers, Male Pins Applications

• Board-to-board electrical connections
• High-density electronic assemblies
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Amphenol documentation to confirm plating and material specifications. Confirm RoHS compliance status directly with the manufacturer or authorized distributors, as historical data may vary by production batch. Ensure the component matches the required pin count and pitch for the target application before procurement.

Headers, Male Pins Selection Notes

Select this component when an unshrouded, double-row header with a 2.54 mm pitch is required for vertical board-to-board mounting. Consider the 3 A current rating and thermoplastic housing properties for environmental compatibility. Verify that the unshrouded design aligns with the mechanical constraints and mating requirements of the system.

Headers, Male Pins Part Context

This part belongs to the BergStik series of headers and wire housings manufactured by Amphenol ICC (FCI). The series provides standard rectangular connectors for various electronic interconnect needs. This specific model represents a high-pin-count variant within the unshrouded vertical header category.

Headers, Male Pins Replacement Considerations

Consult official Amphenol cross-reference documents for verified substitute part numbers. Generic equivalents may not match the precise contact geometry, insulation material, or termination specifications required for reliable operation.
